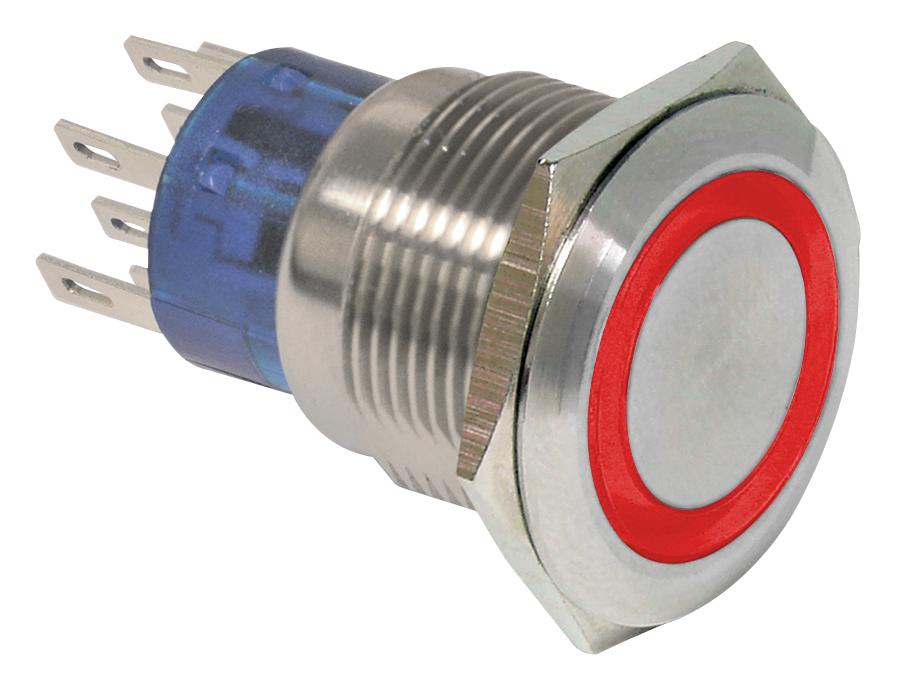

E-SWITCH ULV7F2H11311 Anti-vandal Switch
The ULV7 series anti-vandal switch is a rugged, IP67-rated momentary and latching switch suitable for industrial environments. It features SPDT or DPDT contact arrangements, a 3.2mm travel, and an operating temperature range of -20°C to 55°C. Designed with stainless steel or anodized bodies, the switch supports up to 3A at 250VAC, with a mechanical life of 1,000,000 cycles (momentary). Ideal for medical, security, and industrial applications, it offers illuminated and non-illuminated options, with customizable graphics and a 22mm panel cutout.
E-SWITCH ULV7F2H11311 Anti-vandal Switch Specifications:
- Electrical Rating: 3A, 250VAC
- Mechanical Life: 1,000,000 cycles (momentary); 500,000 cycles (latching)
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ
- Insulation Resistance: 1000 MΩ @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating Temperature: -20°C to 55°C
- Travel: 3.2mm
- Moisture Protection: IP67
- Contact Arrangement: SPDT or DPDT
- Actuation Force: Single Pole: 2.5N; Double Pole: 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 5-14Nm
- Mechanical Impact Protection: IK10
- Agency Approvals: cURus
Buy the UltraLED ULV7 – Reliable Vandal-Resistant Switch for Industrial Applications
Purchase the UltraLED ULV7 anti-vandal switch online today to ensure reliable performance in harsh environments. With IP67 ingress protection and a rating of 3A at 250VAC, it offers durability for industrial, medical, and security applications. Featuring illuminated and non-illuminated options, customizable graphics, and a 22mm panel cutout, this switch is easy to install and highly versatile. Experience excellent mechanical lifespan, IP67 moisture resistance, and certified safety, all available with fast online ordering for your convenience.
Buy UltraLED ULV7 vandal-proof switch now and experience unmatched durability, IP67 protection, and customizable options for your industrial needs.
Frequently Asked Questions
Where can I buy E-SWITCH ULV7F2H11311?
You can click on the BUY or RFQ button to purchase ULV7F2H11311 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ULV7F2H11311?
You can download the ULV7F2H11311 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ULV7F2H11311?
E-SWITCH
