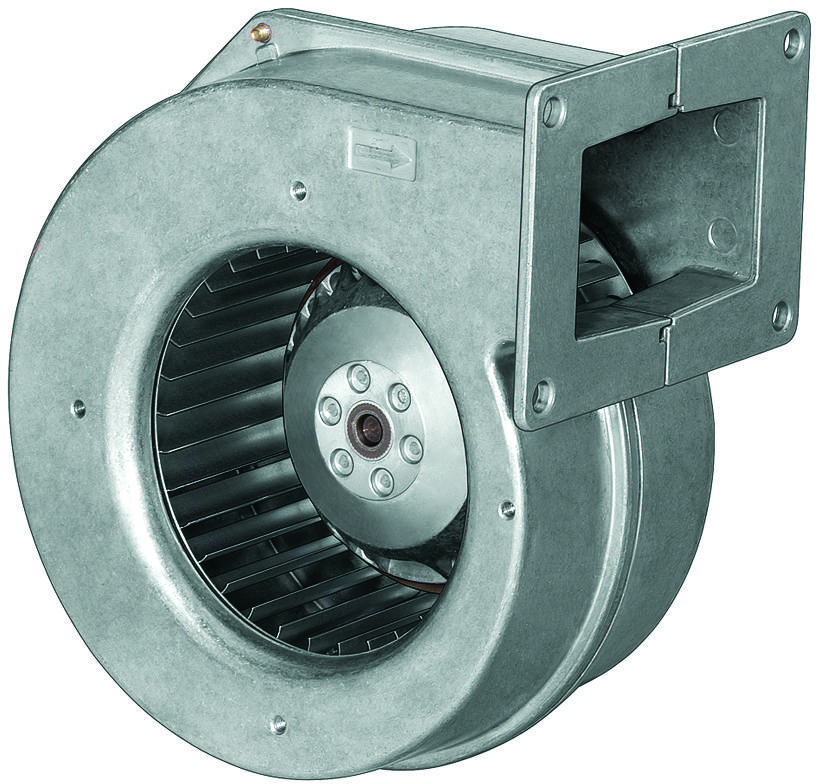

ebm-papst D2E097BI52A4 AC Centrifugal Fan
The D2E097-B152-A4 is an AC centrifugal fan featuring forward-curved, dual inlet blades housed in a hot-galvanised sheet steel structure. It operates efficiently at 230 VAC with a frequency of 50/60 Hz, offering airflow rates of up to 2700 m³/h at 60 Hz. Designed for reliable ventilation applications, it has an IP 20 protection class, and a maximum motor temperature of +80°C. Its durable construction includes a high-quality impeller and motor support structure, making it suitable for continuous operation in industrial and commercial environments.
ebm-papst D2E097BI52A4 AC Centrifugal Fan Specifications:
- Voltage: 230 VAC, 50/60 Hz
- Airflow: Up to 2700 m³/h at 60 Hz
- Power Input: 58 W at 60 Hz
- Current Draw: 0.26 A at 60 Hz
- Impeller Material: Sheet steel, coated in black
- Housing Material: Hot-galvanised sheet steel
- Support Structure Material: Sheet steel, hot-galvanised
- Mass: 1.5 kg
- Size: Diameter 97 mm
- Motor Insulation Class: IP 20
- Max Ambient Temperature: +80°C
- Min Ambient Temperature: -40°C
- Operation Mode: S1 continuous operation
- Motor Bearings: Ball bearing
- Leakage Current: <0.75 mA
- Protection: Thermal overload protector
- Mounting Position: Any
- Direction of Rotation: Counter-clockwise when viewed on rotor
- Safety Standard: EN 60335-1; CE
- Approval: CE marking
Buy the EBM-PAPST Series AC Centrifugal Fan: D2E097-B152-A4
Purchase the EBM-PAPST D2E097-B152-A4 AC centrifugal fan online today for reliable performance and efficient ventilation. This forward-curved, dual inlet fan is housed in durable hot-galvanised steel, operates at 230 VAC with a maximum airflow of 2700 m³/h, and is ideal for industrial cooling and ventilation systems. Its robust construction ensures long-term operation, with safety features like thermal overload protection. Perfect for continuous operation, it offers flexibility with mounting options and maximum ambient temperature tolerance up to +80°C. Invest today for efficient airflow and dependability in demanding environments.
Order your EBM-PAPST series D2E097-B152-A4 today and give your projects the dependable quality they deserve with this efficient industrial fan.
Frequently Asked Questions
Where can I buy ebm-papst D2E097BI52A4?
You can click on the BUY or RFQ button to purchase D2E097BI52A4 from an authorized ebm-papst distributor.
How do I troubleshoot issues or seek technical support for part D2E097BI52A4?
You can download the D2E097BI52A4 datasheet or visit the ebm-papst website for support.
Who is the manufacturer of D2E097BI52A4?
ebm-papst
