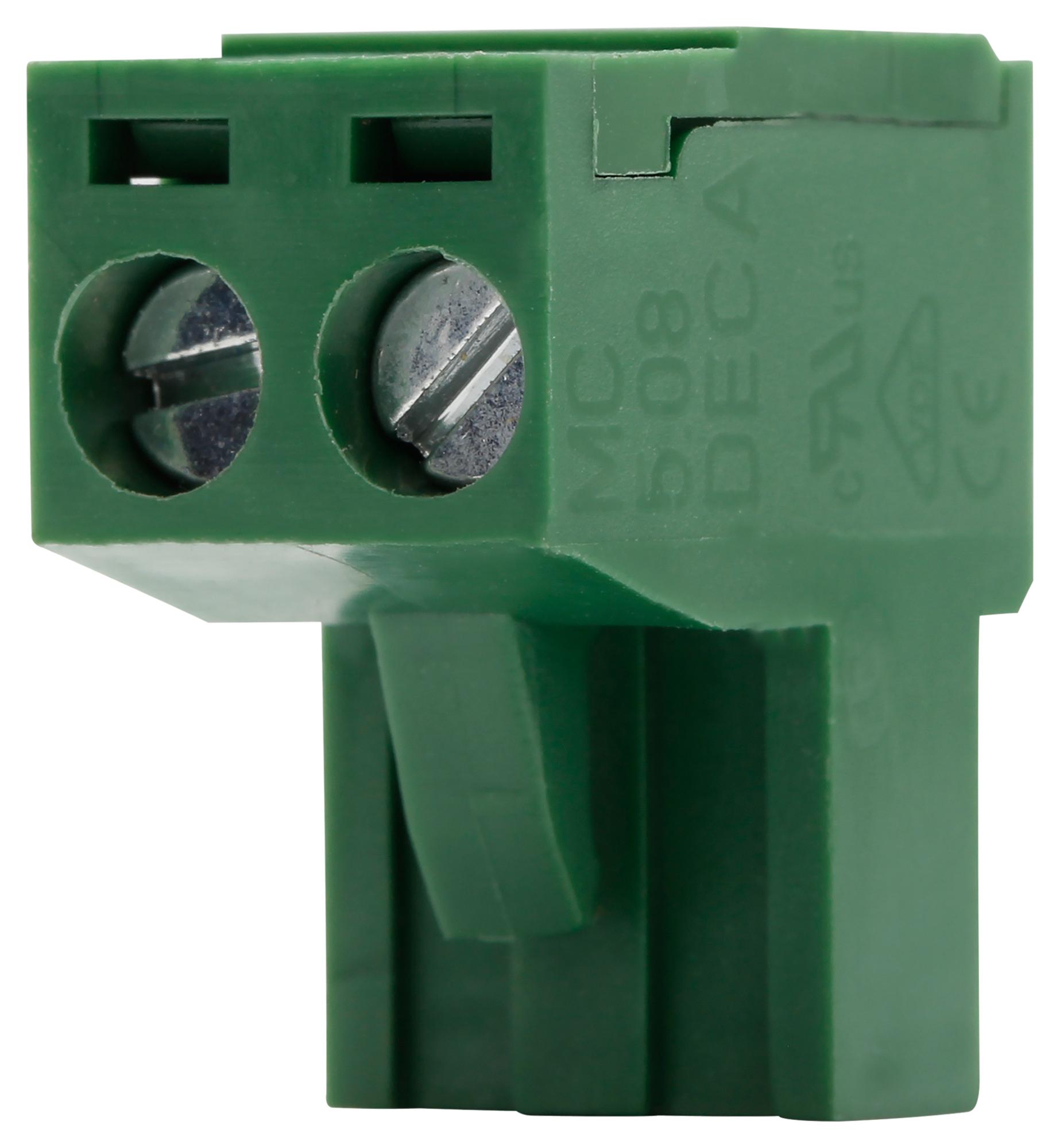

Eaton Bussmann EM256503VR EuroMag Terminal Block
The EM2565 Series EuroMag Terminal Blocks offer pluggable connectivity with a 5.08 mm center spacing, rated for 16A and 300V. Constructed with UL-rated 94V-0 thermoplastic housing and brass tin-plated contacts, these modules are designed for reliable electrical connections in industrial applications. They feature mold-to-length construction, compatible with EM2575 mating headers, and support wire ranges from #12-24 AWG. Operating at temperatures up to 105°C, they ensure durability and safety in various operating environments, with UL and CE certification for quality assurance.
Eaton Bussmann EM256503VR EuroMag Terminal Block Specifications:
- Rating: 16A, 300V
- Center Spacing: 0.20 inches (5.08mm)
- Wire Range: #12-24 AWG
- Housing Material: UL rated 94V-0 thermoplastic
- Contact Material: Brass, tin-plated
- Screw Size: M3.0 zinc-plated steel
- Operating Temperature: -40°C to 105°C (-40°F to 221°F)
- Torque Rating: 7 Ib-in
- Construction: Mold-to-length
- Agency Certifications: UL, CE
- Compatible with EM2575 mating header
- Dimensions vary from 10.16 mm to 121.92 mm for different positions
Buy the Buy EuroMag Terminal Blocks Part Number EM256503VR Online
Purchase the EuroMag Terminal Block EM256503VR online for a reliable, high-quality connection solution suitable for industrial automation and control systems. Featuring a compact design with 5.08mm spacing, rated at 16A and 300V, and made of UL-rated thermoplastic housing, it offers excellent durability and safety. The brass contacts ensure efficient electrical conductivity, while support for wire ranges from #12-24 AWG makes it versatile for various wiring needs. Ideal for control panels, industrial equipment, and automation systems, this pluggable terminal block is a dependable choice for engineers seeking precision and durability in their electrical connections.
Get EuroMag EM256503VR today—designed for reliable pluggable connections with high temperature resistance and versatile wiring options.
Frequently Asked Questions
Where can I buy Eaton Bussmann EM256503VR?
You can click on the BUY or RFQ button to purchase EM256503VR from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part EM256503VR?
You can download the EM256503VR datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of EM256503VR?
Eaton Bussmann
