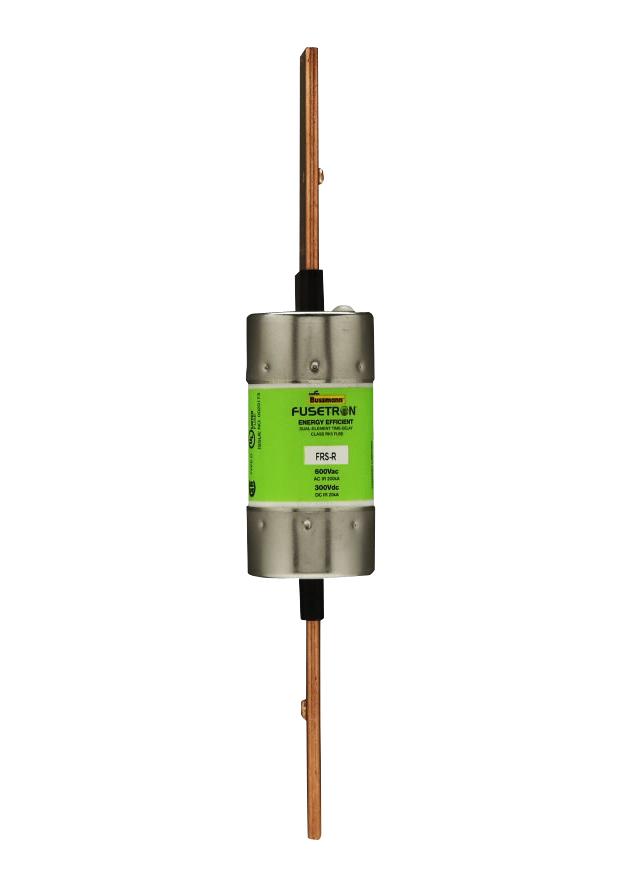

Eaton Bussmann FRSR110 fuse protectors
The Fusetron FRS-R is a series of advanced, energy-efficient dual-element, time-delay fuses rated at 600V and 300Vdc, with amp ratings from 65 to 600 A. These current-limiting fuses provide reliable motor overload, short-circuit, and ground fault protection, especially in circuits with surge currents caused by motors and transformers. Their time-delay feature allows for smaller fuse ratings, reducing costs on switches and panels. Designed to ensure maximum overcurrent protection, they help prevent motor burnout, aid in blackout prevention, and support seamless circuit operation in industrial and commercial settings.
Eaton Bussmann FRSR110 fuse protectors Specifications:
- Voltage Rating: 600Vac, 300Vdc
- Current Ratings: 65-600A
- Interrupting Rating: 200 kA Vac RMS Sym, 20kA Vdc
- Temperature Rating: Not specified
- UL® Listed, CSA® Certified, CE compliant
- Time-delay: Minimum 10 seconds at 500% rated current
- Feature: Dual-element, current-limiting, energy efficient design
- Suitable for circuits with surge currents, motor overload, and short-circuit protection
- Dimensions vary with amp ratings, with specific length details provided for models
- Provides high short-circuit current protection and overload suppression
- Applications include motor control, transformers, and inductive components
Buy the Buy Bussmann Fusetron Time-Delay Fuses Part Number FRSR110 Online
Enhance your circuit safety with Bussmann Fusetron FRS-R dual-element, time-delay fuses rated for 600V and 300Vdc, offering current ratings from 65 to 600A. Designed to protect motors, transformers, and inductive loads against surges, overloads, and short circuits, these energy-efficient fuses ensure reliable operation and cost savings by permitting smaller device ratings. Their high interrupting ratings of 200 kA Vac RMS and 20kA Vdc make them suitable for high-demand applications. Easy to install and compliant with UL, CSA, and CE standards, they deliver exceptional protection in industrial environments.
Buy Bussmann Fusetron FRS-R 110 now and experience unmatched reliability and performance in circuit protection for industrial applications.
Frequently Asked Questions
Where can I buy Eaton Bussmann FRSR110?
You can click on the BUY or RFQ button to purchase FRSR110 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part FRSR110?
You can download the FRSR110 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of FRSR110?
Eaton Bussmann
