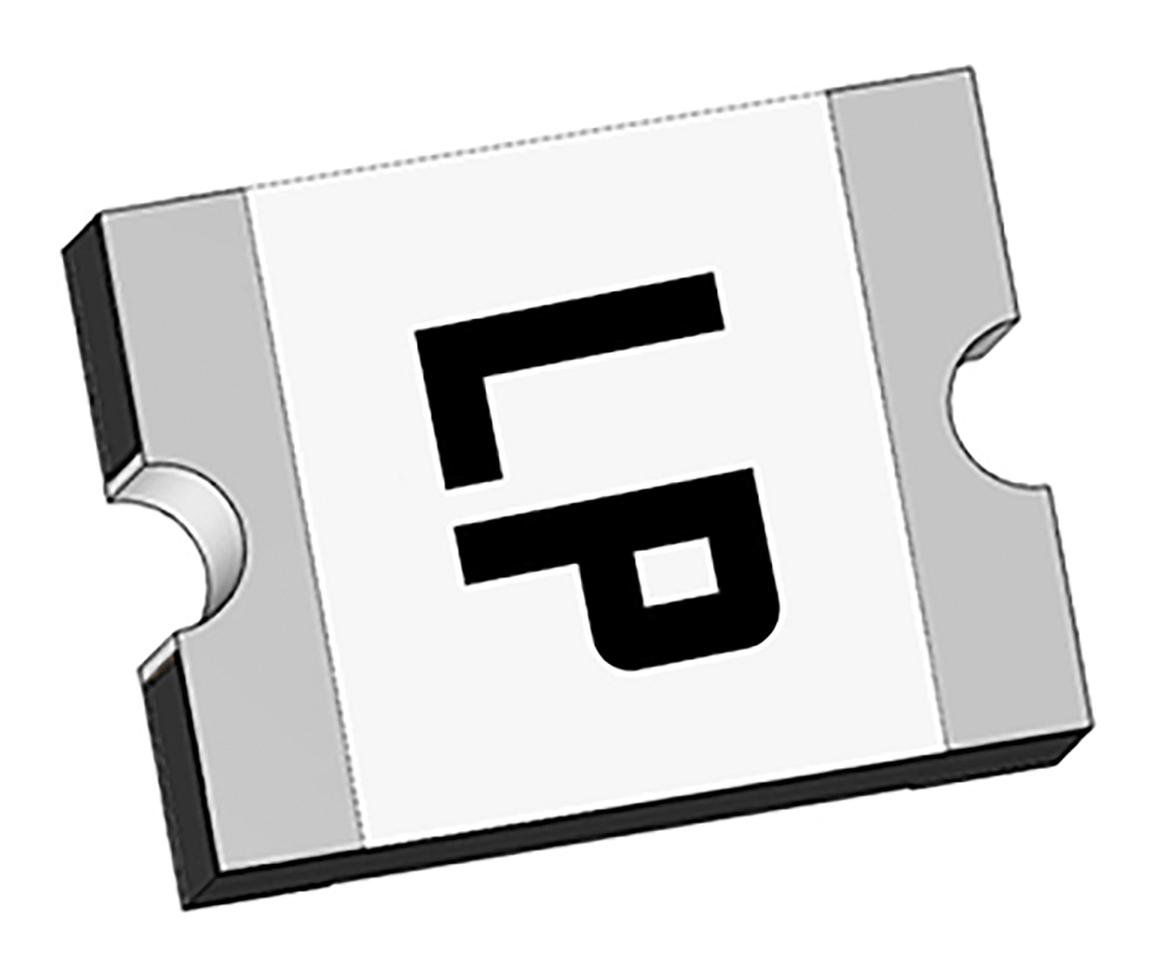

Eaton Bussmann PTSLR12106V300 Low Resistance PTC Fuse
The PTSLR12106V300 is a surface-mount, low resistance PTC fuse with a compact 1210 footprint, rated at 6V with an hold current of 3.00A. Designed for applications in micromotors, fans, medical equipment, and USB protection, it offers fast trip response and reliable overload endurance. The fuse features UL and TUV certifications, ensuring safety and high performance in low voltage circuit protection. Its small size makes it ideal for space-constrained electronic devices, providing dependable resettable protection against overcurrent faults.
Eaton Bussmann PTSLR12106V300 Low Resistance PTC Fuse Specifications:
- Voltage Rating: 6 V
- Hold Current: 3.00 A
- Maximum Fault Current: 50 A
- Resistance: 0.003 ohms (typical)
- Ambient Temperature Range: -40°C to +85°C (with derating)
- Dimensions: 3.00 mm x 3.43 mm
- Package: 1210 (3.2 x 2.5 mm)
- Soldering Profile: Meets EN 61760-1:2006 standards
- Soldering Temperature: 245°C for 3 seconds
- Overload Endurance: 120% Imax at 50 cycles
- Certifications: UL Recognized, TUV Approved
Buy the Buy Eaton PTSLR12106V300 Low Resistance SMD PTC Fuse Online
Order the Eaton PTSLR12106V300 low resistance surface-mount PTC fuse online today. This reliable, UL and TUV certified fuse protects your circuits from overcurrent with fast trip response and compact size. Ideal for medical equipment, fans, micromotors, and USB protection, its durable design ensures long-term performance in space-constrained applications. Easy to solder and install, it provides a dependable safety solution for low voltage electronic systems. Experience seamless procurement and quick delivery by purchasing now online.
Buy Eaton PTSLR12106V300 now and experience unmatched reliability and high-performance circuit protection in your electronic devices.
