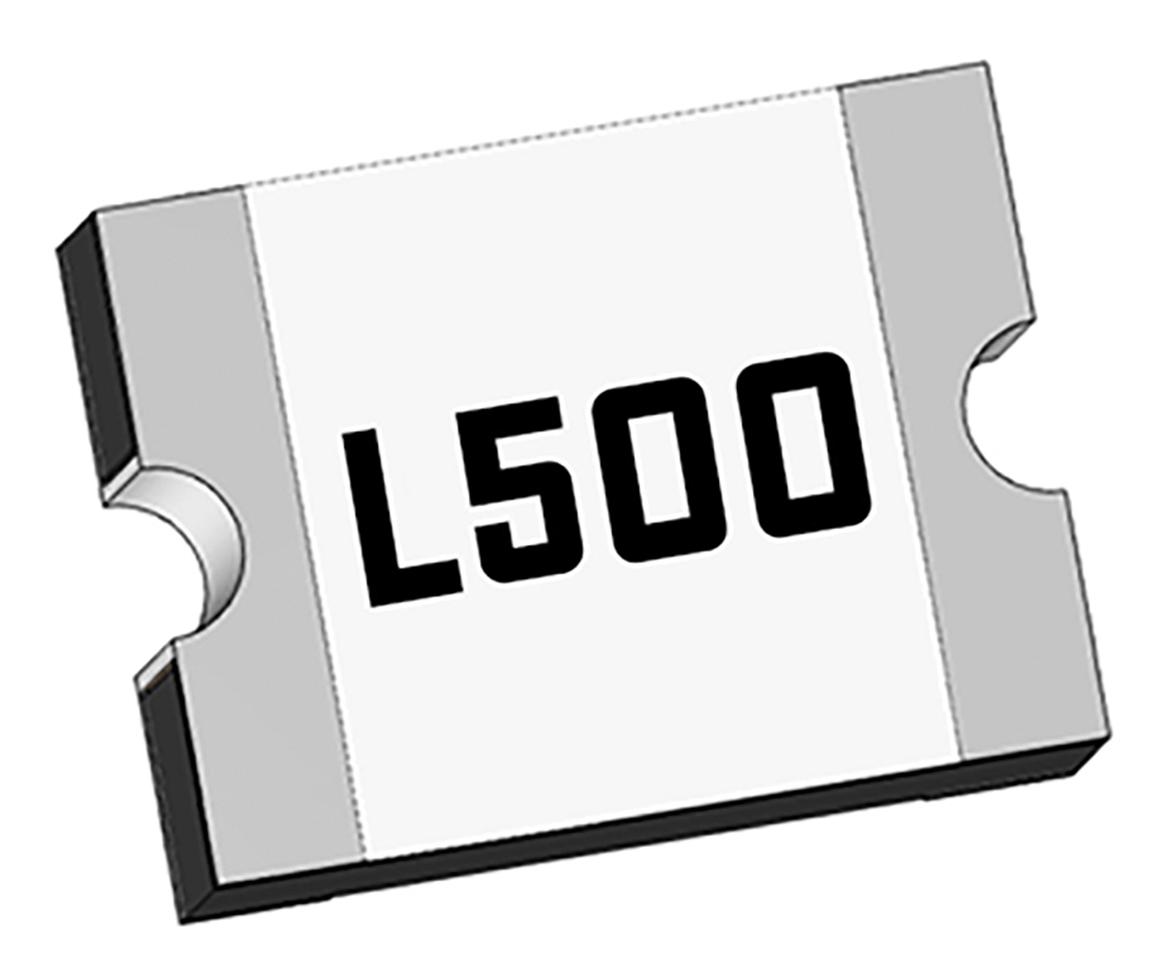

Eaton Bussmann PTSLR18126V370 Low Resistance PTC Fuse
The PTSLR18126V370 is a surface-mount, low-resistance PTC fuse that provides reliable circuit protection for electronic devices. With a maximum voltage of 6V and an hold current of 3.70A, it features fast trip times and a compact 1812 footprint, making it ideal for micro motors, fans, medical equipment, USB protection, and battery charging applications. Its positive temperature coefficient ensures self-resetting after fault conditions, while certified safety standards like UL and TUV guarantee performance and reliability in diverse environments.
Eaton Bussmann PTSLR18126V370 Low Resistance PTC Fuse Specifications:
- Voltage rating: 6 V
- Hold current: 3.70 A
- Resistance: 0.003 Ω (initial), 0.018 Ω (post trip)
- Maximum fault current: 62 A
- Time-to-trip: typically 13 seconds at 50% Imax
- Temperature range: -40°C to +85°C (derating applied)
- Storage temperature: -10°C to +40°C
- Storage humidity: less than 75%
- UL recognized: File no. E343021
- TUV certified: File R 50455924
- Surface mount size: 1812 (4532 metric)
- Overload endurance: UL 1434, 120% Imax for 50 cycles
- Trip endurance: UL 1434, Vmax, Itrip for 1000 hours
- Solderability: IEC60068-2-58, +245°C for 3 seconds
- Humidity aging: 80-85% at +85°C for 100 hours
Buy the Buy Eaton PTC Fuse Part Number PTSLR18126V370 Online
Purchase the Eaton PTSLR18126V370 online to ensure your electronic circuits are protected with a reliable, compact, and certified PTC fuse. Designed for efficient overload and fault current protection, this surface-mount fuse features low resistance and fast trip times. Perfect for micro motors, fans, medical devices, and battery chargers, it guarantees safety and performance in demanding environments. Order now to secure quality circuit protection that enhances device longevity and operational safety, backed by trusted certifications and specifications.
Buy Eaton PTSLR18126V370 now and experience unmatched reliability and performance in circuit protection for compact electronics and power systems.
Frequently Asked Questions
Where can I buy Eaton Bussmann PTSLR18126V370?
You can click on the BUY or RFQ button to purchase PTSLR18126V370 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part PTSLR18126V370?
You can download the PTSLR18126V370 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of PTSLR18126V370?
Eaton Bussmann
