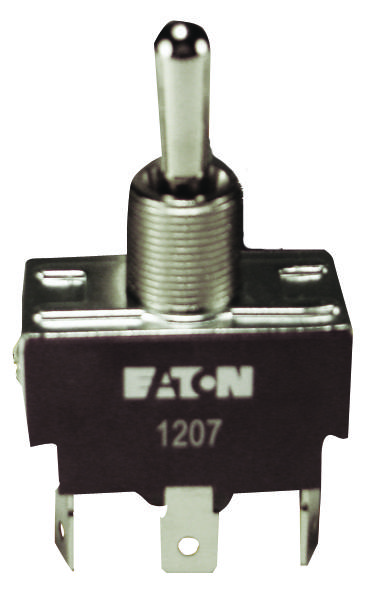

Eaton Electronics XTD1A1A2 Industrial Toggle Switch
The XTD1A1A2 is a robust single-pole single-throw toggle switch designed for high-load applications. It features brass nickel-plated spade terminals, a bright nickel-plated lever, and a thermoset molded base. Compatible with standard 0.48-inch mounting holes, it supports an ON-NONE-OFF configuration suitable for inductive loads, motors, and lamps. The switch employs slow-make/slow-break butt contact technology, offering a maximum contact resistance of 50 milliohms and an IP40 protection rating. Its durable construction makes it ideal for commercial, industrial, and electronic control systems requiring reliable switching.
Eaton Electronics XTD1A1A2 Industrial Toggle Switch Specifications:
- Rating: 20 A at 125 Vac; 10 A at 277 Vac; 3/4 hp 125-250 Vac
- Circuit configurations: PST, 1PDT, 2PST, 2PDT
- Terminal types: Brass screw, brass solder lugs, brass nickel-plated 0.250-inch spade
- Base material: Thermoset molding material
- Finish: Bright nickel-plated toggle lever and bushing
- Contact mechanism: Slow-make/slow-break butt contact
- Contact resistance: 50 milliohms maximum
- Dielectric strength: AC 1500 V, 1 minute
- Operating temperature: 0-65°C
- Insulation resistance: DC 500 V, 100 M ohms
- Mounting: Threaded bushing 12.0 +0.1, -0 mm; 16.5 +1, -1 mm
- Keyway: 1.8 mm, in DOWN position
- Seal level rating: IP40
- Certifications: UL Recognized, RoHS compliant
- Material: Thermoset plastic
Buy the Buy Eaton XTD1A1A2 Part Number XTD1A1A2 Online
Purchase the Eaton XTD1A1A2 toggle switch online today and benefit from a highly durable switch designed for demanding load applications. Its nickel-plated terminals, easy installation, and reliable slow-make/slow-break contact mechanism make it ideal for industrial machinery, consumer electronics, and medical equipment. With a standard 0.48-inch mounting hole, this switch ensures seamless integration into your control systems. Order now to enjoy quick delivery and exceptional performance for your commercial, industrial, or automation projects.
Buy Eaton XTD1A1A2 now and experience unmatched reliability and high-load performance in your industrial or electronic control systems.
