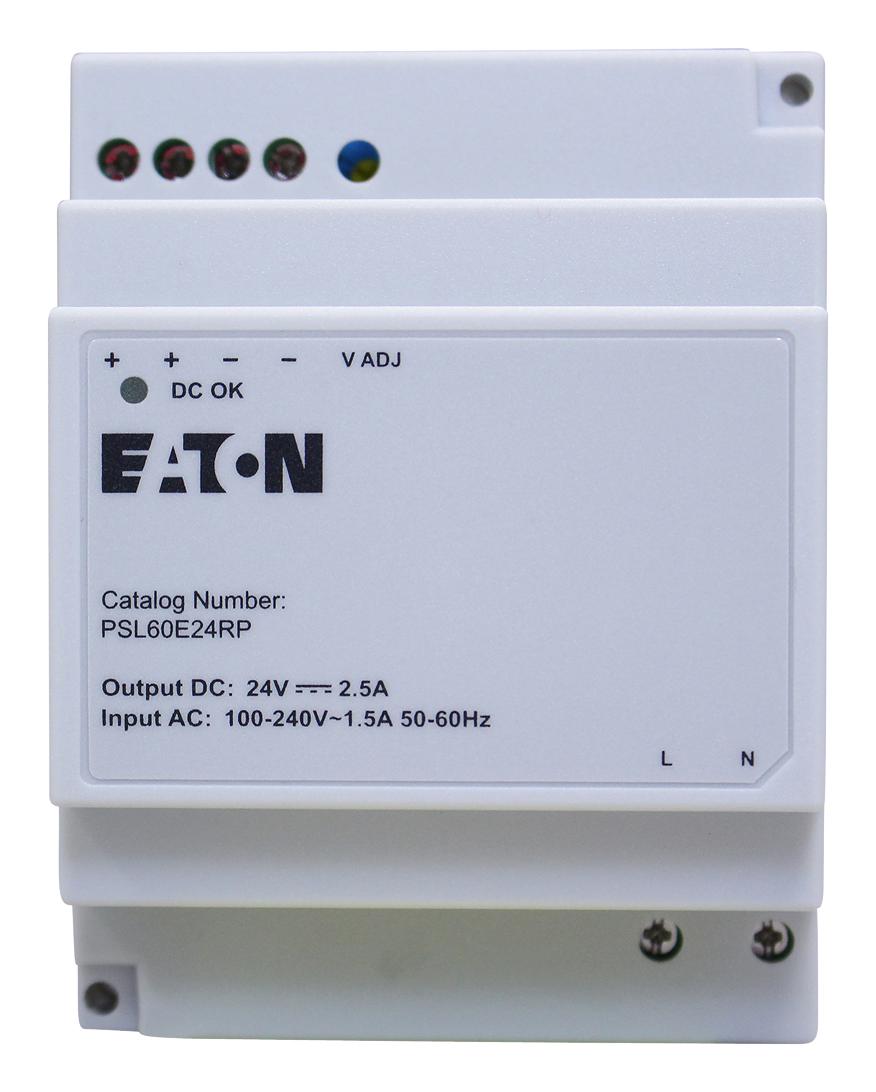

Eaton Electronics PSL60E24RP Power Supply
The Eaton PSL series offers compact, single-phase DIN rail power supplies designed for industrial and automation applications. Featuring a universal input range of 90-264 Vac, these supplies operate efficiently in temperatures from -25°C to +71°C with over 80% efficiency. They include double isolated input with no earth connection, UL and IEC safety compliance, and RoHS certification. Suitable for use in space-constrained environments, they support communication networks, sensors, PLCS, and other electrical systems, providing reliable power in harsh conditions with high MTBF exceeding 500,000 hours.
Eaton Electronics PSL60E24RP Power Supply Specifications:
- Input Voltage Range: 90-264 Vac / 125-375 Vde
- Input Frequency: 47-63 Hz
- Output Power: Up to 30W
- Output Voltage: 24 Vdc ±2%
- Efficiency: Greater than 80%
- Operating Temperature Range: -25°C to +71°C
- Protection: Overvoltage, short circuit, overcurrent, over temperature
- MTBF: Over 500,000 hours
- Housing Material: Plastic (PC), enclosed
- Protection Degree: IP20
- Certifications: UL, IEC, UL 508, RoHS, CE, Class II (no primary earth)
- Signal Indicators: Green LED for DC OK
- Dimensions: Vary by model, approx. 31-55.6mm length, 7-55.6mm width, 9.9-55.6mm height
- Wire Range: AWG 22-12
- Surge Voltage Protection: Yes
- Vibration and Shock Resistance: Suitable for industrial environments
- Altitude: Up to 2000 meters
Buy the Buy Eaton PSL Series Power Supply Part Number PSL60E24RP Online
Enhance your automation system with the Eaton PSL series power supply. With universal input voltage, wide temperature range, and UL IEC safety standards, it offers dependable power for sensors, PLCs, and industrial applications. This compact DIN rail unit features a robust plastic enclosure, high MTBF exceeding 500,000 hours, and protection against overvoltage, short circuit, and over temperature. Easy installation and low maintenance make it ideal wherever space efficiency and reliability are priorities, ensuring your electrical systems operate smoothly and safely.
Buy Eaton PSL series power supply PSL60E24RP now and experience unmatched reliability and efficiency for industrial automation tasks.
