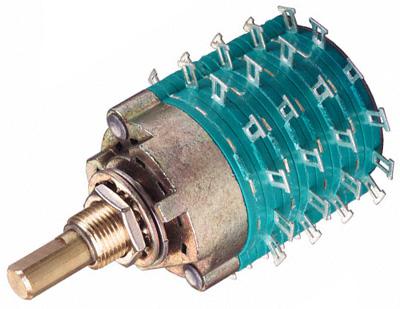

ELECTROSWITCH C4D0304NA rotary switch
The C4D0304NA rotary switch features a three-pole, four-throw (3P4T) configuration with adjustable stops, solder lug terminals, and non-shorting contacts. Part of the C4 Series, it ensures protection against dirt and moisture with a fully enclosed design, and maintains lifetime lubrication. It supports a maximum initial contact resistance of 3 milliohms, rated for at least 25,000 cycles, making it suitable for industrial automation and control applications requiring reliable switching performance in harsh environments.
ELECTROSWITCH C4D0304NA rotary switch Specifications:
- Electrical Rating: 0.5 amp @ 28 VDC; 0.3 amp @ 125 VAC
- Contact Resistance: 3 milliohms (initial)
- Mechanical Cycles: Minimum 25,000
- Dielectric Strength: 1,000 VAC between current carrying parts and ground
- Materials: Brass contacts with silver plating, non-corrosive parts
- Environmental Protection: Fully enclosed design, IP67 rating available
- Mounting: Solder lug terminals with adjustable stops
- Index Life: 25,000 cycles
- Index Angles: Standard 30°, options up to 90°
- Stop Strength: ≥15 in. lbs.
- Hardware: Includes mounting nut and lockwasher
- Design: Dual-ball index, hill and valley indexing
Buy the Electro Switch C4D0304NA – Reliable Rotary Switch for Industrial Applications
Purchase the Electro Switch C4D0304NA rotary switch online today for robust industrial control solutions. Designed with adjustable stops, solder lug terminals, and non-shorting contacts, this switch offers reliable performance over at least 25,000 cycles. Its fully enclosed, durable construction provides protection against dust and moisture, meeting IP67 standards. Ideal for automation, machinery, and control panel applications, the C4D0304NA ensures longevity, precise operation, and safety in demanding environments. Get yours now for dependable industrial switching!
Order your Electro Switch C4D0304NA rotary switch today and ensure reliable, durable performance in demanding industrial control systems.
Frequently Asked Questions
Where can I buy ELECTROSWITCH C4D0304NA?
You can click on the BUY or RFQ button to purchase C4D0304NA from an authorized ELECTROSWITCH distributor.
How do I troubleshoot issues or seek technical support for part C4D0304NA?
You can download the C4D0304NA datasheet or visit the ELECTROSWITCH website for support.
Who is the manufacturer of C4D0304NA?
ELECTROSWITCH
