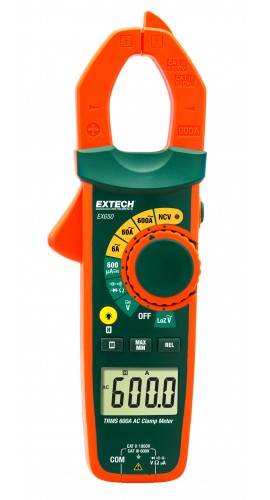

EXTECH EX650 Clamp Meter
The Extech EX650 offers comprehensive electrical testing capabilities, including measurements of AC current, AC/DC voltage, microcurrent, resistance, capacitance, diode testing, and continuity. It features a built-in non-contact AC voltage detector with LED alert and an LED flashlight for use in dimly lit areas. The meter provides True RMS measurements for accurate readings on distorted or noisy waveforms, and its Low Impedance (LoZ) function prevents false readings caused by ghost voltages. Additionally, it has a DC microampere function suitable for HVAC/R flame rod current measurements. The device boasts a large 6000-count backlit LCD display, data hold, min/max recording, and a relative measurement mode. Its 1.18-inch jaw size can accommodate conductors up to 350 MCM. Auto Power Off helps conserve battery life, and it is rated CAT III 600V for safety.
EXTECH EX650 Clamp Meter Specifications:
- AC Current Range: 60A, 600A (0.0014), DC Current: 600A (0.01A), 60A (0.01A)
- AC/DC Voltage Range: 750V (1mV), 1000V (0.1mv)
- Basic Accuracy: ACV +1.2% of rdg, DCV +0.8% of rdg, A: 22.5% of dg read
- Resistance: 60MΩ (0.19), Capacitance: 60mF (0.01nF)
- Frequency: 410Hz to 1MHz
- Display: 6000 count backlit LCD
- Jaw Size: 1.18 inches (30mm) accommodating conductors up to 350 MCM
- Dimensions: 9 x 3 x 1.6 inches (228 x 77 x 41 mm)
- Weight: approximately 9.4 oz (265 grams)
- Features include True RMS, LoZ, NCV, LED flashlight, data hold, min/max, relative mode, and auto power off
- Safety Rating: CAT III 600V
Buy the Buy Extech Clamp Meter Part Number EX650 Online
Purchase the Extech SeriesEX650 Clamp Meter online today for precise AC/DC measurements, True RMS accuracy, non-contact voltage detection, LoZ function, and an LED worklight. This versatile tool is ideal for electricians, technicians, and maintenance professionals. It features a large backlit display, miniaturized jaw size for conductor accommodation up to 350 MCM, data hold, min/max recordings, and a relative measurement mode for versatile testing in various environments. Ensure safety with CAT III 600V rating and enjoy convenient auto power-off for extended battery life. Get yours now for dependable electrical diagnostics.
Order your Extech SeriesEX650 True RMS Clamp Meter today and enhance your electrical testing with reliable, accurate measurements and safety features.
