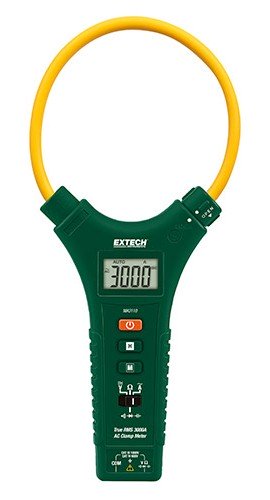

EXTECH MA3110 AC Clamp Meter
The Extech MA3110 offers a versatile digital multimeter with auto-ranging AC current, AC/DC voltage, resistance, capacitance, and diode/continuity testing functions. It features True RMS measurement for accurate readings on noisy or distorted waveforms. The flexible 11-inch (28 cm) clamp jaw easily wraps around bus bars and cable bundles, accommodating cables up to 8 mm in diameter for working in tight spaces and around large conductors. The device has a 6000 count LCD display, data hold function to freeze readings, over-range and low battery indicators, and auto power-off with disable options. It is rated CAT III-1000V and CAT IV-600V for safety.
EXTECH MA3110 AC Clamp Meter Specifications:
- AC Current Range: 600A, 3000A, Max resolution 1A, Accuracy: ±1%
- AC Voltage Range: 6, 60, 600, 1000V, Resolution: 0.001V, Accuracy: ±1%
- DC Voltage Range: 6, 60, 600, 1000V, Resolution: 0.001V, Accuracy: ±0.8%
- Resistance Range: 600Ω to 60MΩ, Resolution: 0.12Ω to 1.5%, Accuracy: ±1.5%
- Capacitance Range: 6nF to 60F, Resolution: 0.001nF, Accuracy: ±3%
- Clamp Jaw: 11 inches (28 cm), diameter 8mm, suitable for large conductors and tight spaces
- Display: 6000 count LCD, Data hold, Over-range and low battery indicators
- Safety Ratings: CAT III-1000V, CAT IV-600V
- Power: Two AAA batteries, Auto power-off, Disable feature available
- Dimensions: 11.4 x 5.3 x 1.1 inches (290 x 135 x 27.8 mm)
- Weight: 7.302 oz (208 g) without batteries
Buy the Extech MA3110 – Reliable AC Clamp Meter for Industrial Applications
Purchase the Extech MA3110 today for accurate, reliable measurements in demanding industrial environments. Its flexible clamp, True RMS technology, and safety ratings ensure precision when working with large cables and tight spaces. Equipped with a convenient LCD display, data hold, and auto power-off, this multimeter is perfect for electricians and technicians. Its rugged design and comprehensive features make it an essential tool for maintaining and troubleshooting electrical systems efficiently. Order now and experience reliable performance in every measurement.
Get Extech MA3110 today—built for precision and long-lasting durability, ideal for working with large conductors and challenging electrical environments.
Frequently Asked Questions
Where can I buy EXTECH MA3110?
You can click on the BUY or RFQ button to purchase MA3110 from an authorized EXTECH distributor.
How do I troubleshoot issues or seek technical support for part MA3110?
You can download the MA3110 datasheet or visit the EXTECH website for support.
Who is the manufacturer of MA3110?
EXTECH
