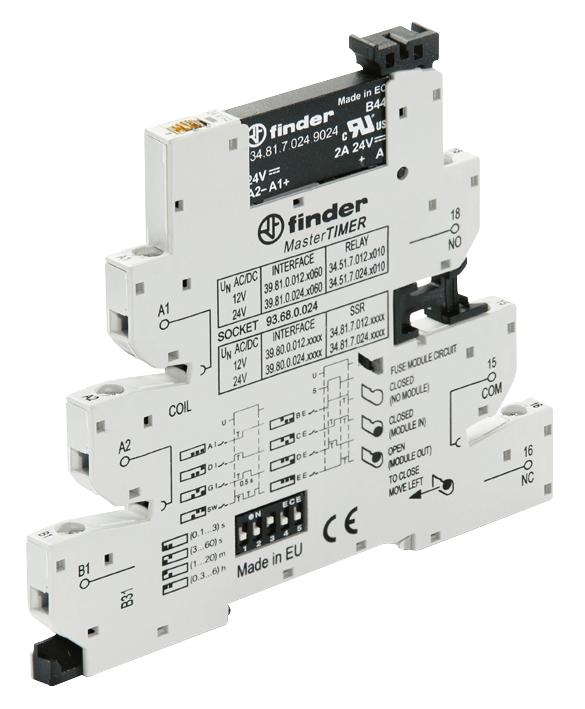

FINDER 398000249024 Timer Interface Module
The FINDER 39.80.0.024.9024 is a versatile timer interface module designed for integration into PLC and electronic systems. Its compact 6.2mm width allows for space-saving installations, while the rotary knob provides convenient adjustment of the timer settings. The DIP-switch enables selection of multiple time scales and functions, offering flexibility for diverse applications. Common connection is possible with optional jumper links. This module is suitable for a wide range of industrial automation tasks, including process control, sequencing, and timing-based operations.
FINDER 398000249024 Timer Interface Module Specifications:
- Space Saving: 6.2 mm wide
- Connections: For 16-way jumper link
- Coil Indication: Integral coil indication and protection circuit
- Retention: Secure retention and easy ejection by plastic clip
- Terminals: Dual screw head (blade+cross) and Push-in terminals
- Output: 1 CO 6 A/250 V AC
- Switching: High switching capability, silent, high speed
- Mounting: 35 mm rail mounting (EN 60715)
- Supply Voltage: 12 to 24 V AC/DC
- Mechanical Life: 10 million cycles
- Electrical Life: 60,000 cycles
- Operate/Release Time: 5/6 ms
- Insulation: 6 kV (8 mm)
- Ambient Temperature: -40…+70 °C
- Protection: IP 20
