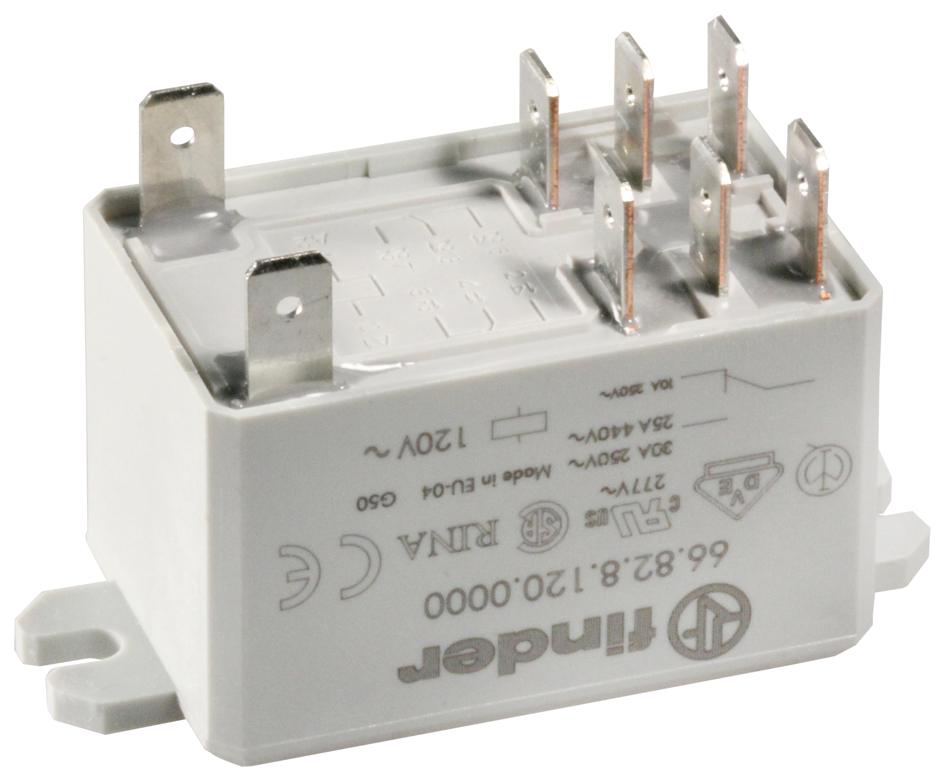

FINDER 668281200000 Power Relay
This is a two-pole power relay with an AC coil, belonging to the 66.82 series. It features a double-throw (DPDT) contact configuration with AgCdO2, cadmium-free contacts. The relay provides reinforced insulation between the coil and contacts in accordance with EN 60335-1, offering 8mm creepage and clearance distances. It is designed for flange mounting with Faston 250 connections. The relay offers 6 kV (1.2/50 µs) isolation between coil and contacts and has an RT II environmental protection rating. Suitable for industrial, power management, automation, and process control applications.
FINDER 668281200000 Power Relay Specifications:
- Contact configuration: 2.NO (DPST-NO)
- Rated current: 30/50 A
- Rated voltage: 250/440 VAC
- Rated load: 7500 VA AC1
- Electrical life: 100 million cycles
- Mechanical life: 10^8 cycles
- Coil voltage options: 6-12-24-110/115-120/125-230/240 VAC
- Rated power: 3.6/1.7 VA at 6 V AC, 36/17 VA at 24 V AC
- Insulation between coil and contacts: 8 mm reinforced, 6 kV (1.2/50 µs)
- Ambient temperature range: -40°C to +70°C
- Environmental protection: RT II
- Connection types: PCB with bifurcated terminals, Faston 250
- Creepage and clearance: 8 mm
- Insulation class: Reinforced (EN 61810-1)
- Dielectric strength between open contacts: 1500 VAC
- Overvoltage category: II
- Certifications: CE, IEC, UL (according to standard)
- Pollution degree: 3
Buy the Buy Finder 66 Series Power Relay Part Number 668281200000 Online
Order the Finder 66 Series Power Relay, Part Number 668281200000, online today and enjoy reliable, high-current switching for industrial automation. Designed with cadmium-free contacts, reinforced insulation, reinforced enclosure, and Faston 250 connections, this relay ensures durability and safety in power management, automation, and control applications. Its flange mount design with fast connection types simplifies installation. With a wide operating temperature range, high dielectric strength, and environmental protection ratings, this power relay offers excellent performance for demanding industrial environments.
Get Finder 66 Series Power Relay today—built for industrial automation and power management with reinforced insulation and high current capacity.
Frequently Asked Questions
Where can I buy FINDER 668281200000?
You can click on the BUY or RFQ button to purchase 668281200000 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 668281200000?
You can download the 668281200000 datasheet or visit the FINDER website for support.
Who is the manufacturer of 668281200000?
FINDER
