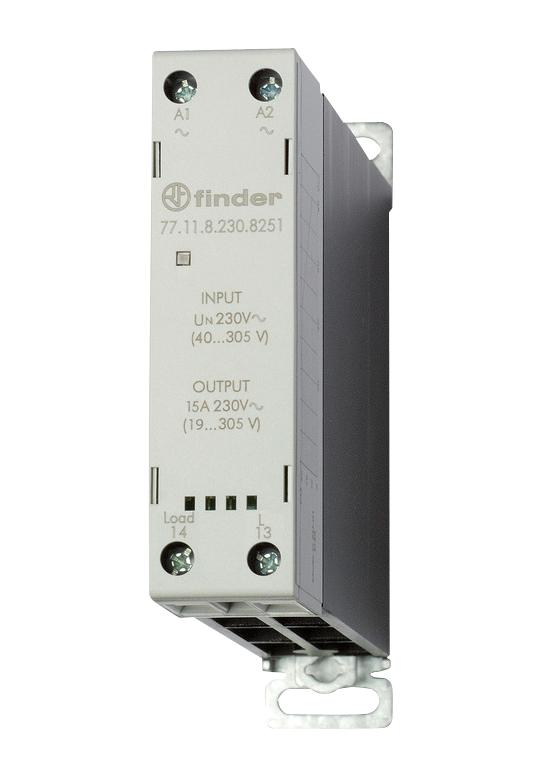

FINDER 771190248251 Modular Solid State Relay
This is a modular solid state relay suitable for controlling electric loads, motors, and electromagnets across various voltage ranges, including 24V, 125V, and 230V DC/AC. Designed for high-speed switching with zero-crossing and random switch-on options, it features high endurance, silent operation, and spark-free switching. The relay is mounted on standard 35mm DIN rails, includes thermal management options with heatsinks, and offers reliable isolation and insulation suitable for industrial automation, heating, and motor control applications. It has various configurations, current ratings up to 50A, and is compliant with international safety standards.
FINDER 771190248251 Modular Solid State Relay Specifications:
- Rated current: up to 50A
- Rated voltage: 24V to 600V AC/DC
- Switching speed: high, with zero-crossing and random switch-on versions
- Insulation: 6 KV between input and output for models 77.31, 77.45, 77.55
- Operating temperature: -20°C to +80°C
- Protection category: IP 20
- Mounting: 35 mm DIN rail
- Thermal management: optional heatsinks with thermal resistances of 0.9 K/W and 2 K/W available
- Electrical life cycles: 10^8
- Peak off-state voltage: up to 1200V
- Minimum switching current: 100mA to 300mA depending on model
- Leakage current at OFF state: 1 to 10mA
- Control power: 0.4W to 7.5W depending on the model
- Compliance: CE, UL, and relevant safety standards
Buy the Buy Finder Modular Solid State Relay Part Number 771190248251 Online
Discover the convenience of purchasing high-performance modular solid state relays online with Finder's 771190248251 model. Designed for industrial automation, motor control, and heating applications, this relay offers silent switching, high endurance, and optional heatsink mounting. With ratings up to 50A and versatile voltage compatibility, it ensures reliable, spark-free operation. Order now to enhance your automation systems with a dependable, efficient, and easy-to-install relay that meets international safety standards.
Buy Finder 771190248251 now and experience unmatched reliability, high endurance, and silent switching for industrial automation and motor control.
Frequently Asked Questions
Where can I buy FINDER 771190248251?
You can click on the BUY or RFQ button to purchase 771190248251 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 771190248251?
You can download the 771190248251 datasheet or visit the FINDER website for support.
Who is the manufacturer of 771190248251?
FINDER
