FINDER 9505SPA Relay Socket

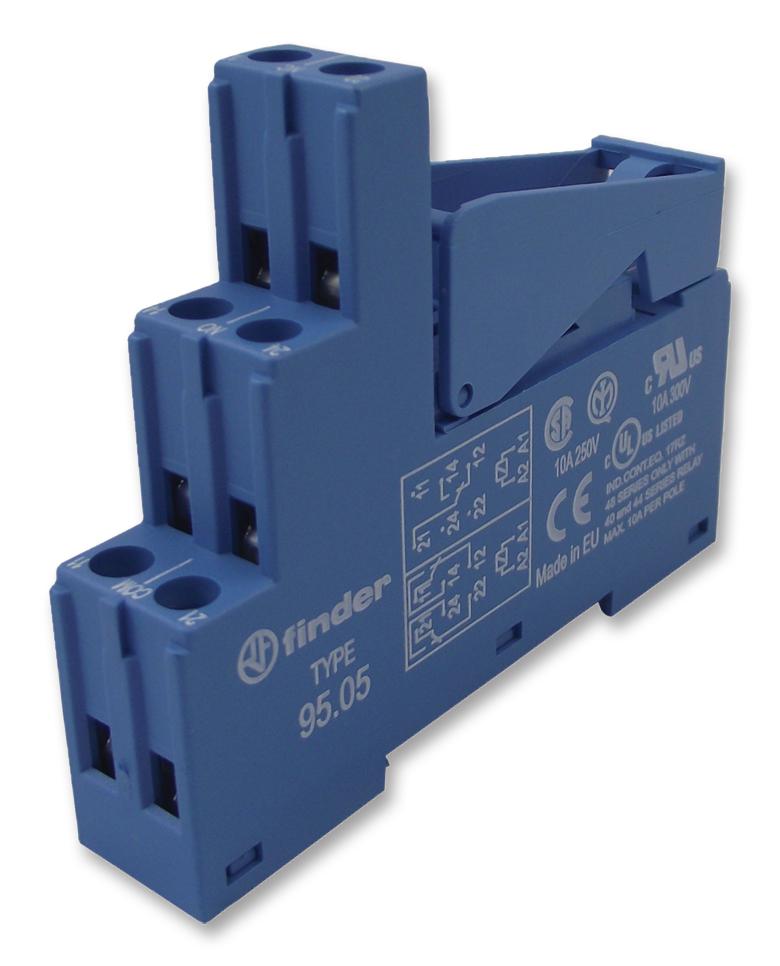

The 95.05SPA is a blue relay socket with 8 pins, designed for panel or 35mm DIN rail mounting. It features screw terminals and is suitable for use with series relays 40.51, 40.52, 40.61, and 44.52/62. The socket includes a plastic retaining and release clip, offers IP20 protection, and is rated for 10A at 250V. It is ideal for industrial, power management, automation, process control, and consumer electronics applications.
FINDER 9505SPA Relay Socket Specifications:
- Rated values: 10A at 250V
- Dielectric strength: 6 kV (1.2/50 ps) between coil and contacts
- Protection category: IP20
- Ambient temperature: -40°C to +70°C
- Wire strip length: 8 mm
- Max wire size for solid/stranded wire: 2x(0.2...1.5) mm²
- AWG: 2x(24...18)
- Material: Not specified but suitable for industrial relay sockets
- Mounting: Panel or 35 mm DIN rail
- Features: Screw terminals, plastic retaining clip, suitable for series relays
- Compliance: According to EN 61810-1
- Overvoltage category: II
- Insulation: Reinforced (8 mm)
Buy the Findenet Series 95.05 Relay Socket: 9505SPA
Purchase the Findenet 9505SPA relay socket online now to ensure a secure, IP20-rated connection for your automation, power, and control applications. Crafted for durability, it features screw terminals for easy wiring, and compatible with multiple relay series. Suitable for panel or DIN rail mounting, rated for 10A at 250V, and suitable for industrial environments requiring reliable performance and efficient power distribution. Secure your automation components with this high-quality socket today for seamless integration and dependable operation.
Get Findenet 9505SPA relay socket today—built for robust industrial automation, power management, and reliable process control.
Frequently Asked Questions
Where can I buy FINDER 9505SPA?
You can click on the BUY or RFQ button to purchase 9505SPA from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 9505SPA?
You can download the 9505SPA datasheet or visit the FINDER website for support.
Who is the manufacturer of 9505SPA?
FINDER
