FLUKE FLUKE BT521 Datasheet & Stock

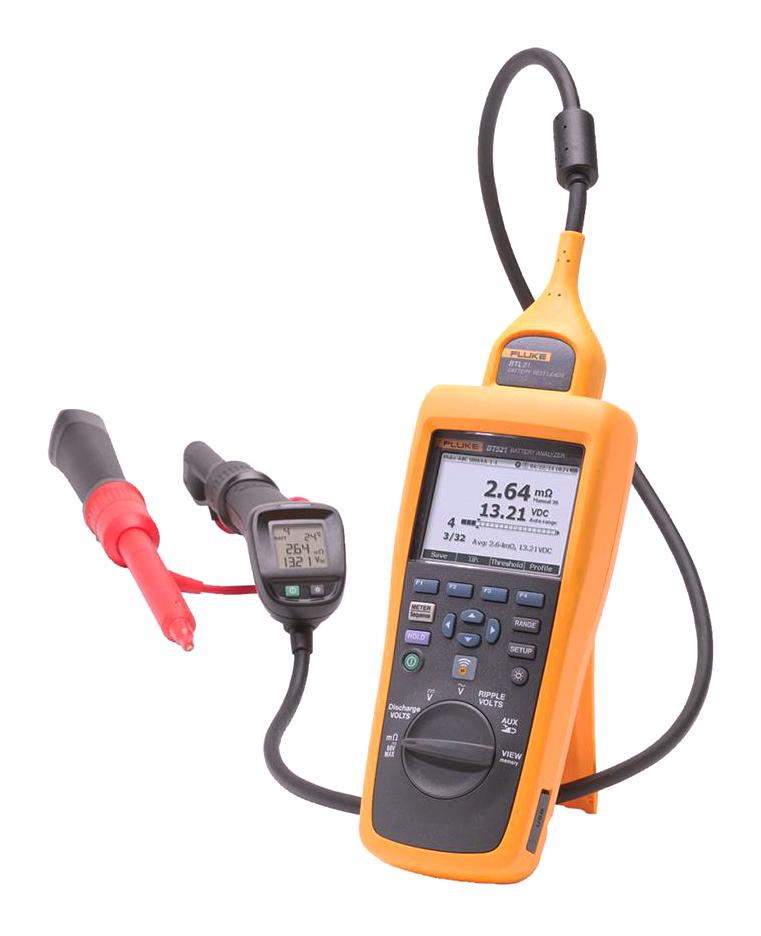

The FLUKE-BT521 is a Battery Analyser for stationary battery systems. It offers reduced testing complexity, a simplified workflow and an intuitive user interface provide a new level of ease-of-use in battery testing. It is ideal test tool for maintenance, troubleshooting and performance testing of individual stationary batteries and battery banks used in critical battery back-up applications. It covers a broad range of battery test functions ranging from DC voltage and resistance tests to full condition testing using automated string function testing and the test probe integrated infra-red temperature measurement system. It allows to quickly and easily defining upper and lower measurement thresholds or tolerance ranges. During the testing process, measured values are automatically compared to the predefined threshold levels producing a PASS, FAIL or WARN indication after each measurement.




Intelligent test probes with long and short extenders

Built-in LCD display

Speaker for visual and audio feedback

Integrated infrared temperature sensor

During the internal resistance test, it also measure the voltage of the battery under test

Discharge volts

Ripple voltage test

Meter and sequence modes

Inter-cell strap resistance test and data management

Auto hold





Auto save

Fluke battery management software

Comprehensive logging

Optimized user interface - Quick, guided setup ensures capturing the right data every time

7.4V 3000mAh lithium-ion battery for more than 8hrs continuous operation - Battery life

USB port - For fast data download to supplied data analysis & report management application software

Highest safety rating in the industry

Wireless capability works with Fluke battery analyse mobile app (Fluke BA Mobile)

Designed for measurements on stationary batteries of all types





Applications


Test & Measurement,

Industrial Maintenance,

Electrical,

Safety,

Facility Maintenance,

Maintenance & Repair






Contents

Battery analyzer, 4-wire test pin (set), BTL10 Basic Test Lead (set), TL175 TwistGuard™ Test Leads with adaptor, BTL21 Intelligent Test Probe Set, with extender and temperature sensor, i410 AC/DC Current Clamp, BP500 lithium-ion battery, BC500 AC charger, Mini-USB cable, Shoulder strap, Belt strap, Magnetic hanging strap, FlukeView® Battery Management Software, Soft carrying case, Spare fuses (2), Battery tags, Zero Ohm Calibration Resistor
