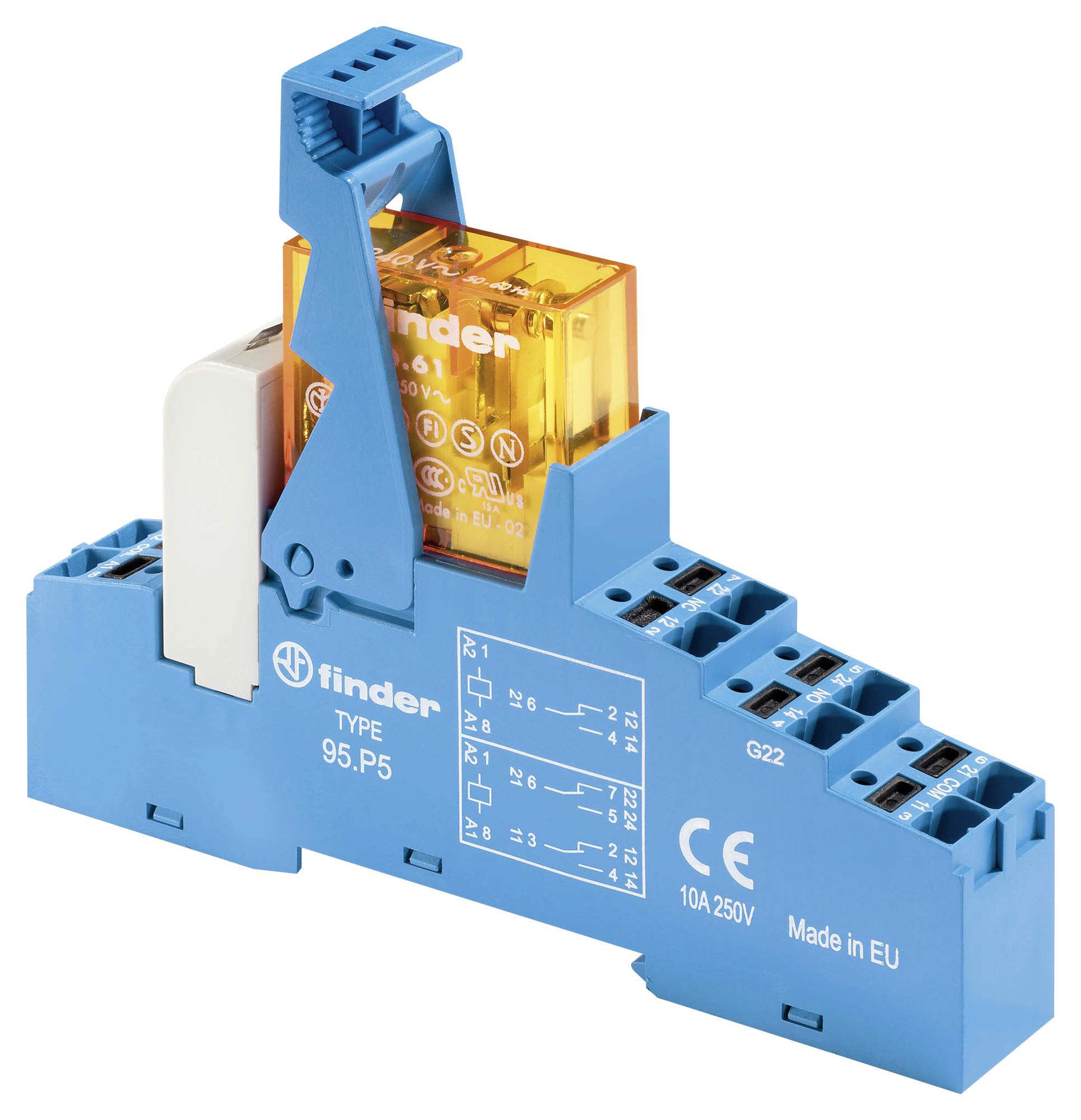

Finder 48P670240050SPA Industrial Relay Module
The relay interface modules are designed for PLC and electronic systems, offering various configurations such as SPDT and DPDT contacts with rated currents up to 16A and operating voltages of 250/400 VAC. These modules feature screw or push-in terminals, UL and CE approvals, and are mounted on standard 35 mm rails. Available with cadmium-free contacts, they support both AC and DC coils, with options for supply status indication, EMC suppression, and different contact materials like AgNi and AgSnO. Their robust design ensures durability in industrial automation applications, supporting electrical and mechanical longevity.
Finder 48P670240050SPA Industrial Relay Module Specifications:
- Contact configuration: SPDT and DPDT options with rated currents from 8A to 16A
- Maximum switching voltage: VAC 250/400
- Rated load: VA 2000-4000, AC15 VA 500-750
- Single phase motor rating: 0.37-0.55 kW
- Breaking capacity: 30/110/220V A 8-16
- Contact material: AgNi, AgCdo, AgSnO2
- Coil nominal voltage: 12V, 24V, 110V, 120V, 230V AC/DC
- Rated coil power: 0.5-1.2 VA/W
- Coil operating range: 0.8-1.5 Un
- Operate/release times: 7-12 ms
- Insulation between coil and contacts: 6-8 kV
- Dielectric strength: 1000 VAC
- Temperature range: -40°C to +70°C
- Protection category: IP20
- Compliance: UL, CE approvals
- Mounting: 35 mm rail (EN 60715)
- Contact life: 10^7 cycles (AC), 10^8 cycles (DC)
- Environmental durability suitable for industrial use
Buy the Cembre 48P670240050SPA – Reliable Industrial Relay Modules for Automation
Purchase the Cembre 48P670240050SPA relay module online today and enhance your automation setup. Designed for durability and high performance, it features selectable coil voltages, robust contact materials, UL and CE approvals, and mounting on standard 35 mm rails. Its versatile contact configurations, high rated currents up to 16A, and support for both AC and DC coils make it ideal for complex industrial control systems. Easy installation, reliable operation, and long service life ensure your automation process remains efficient, safe, and dependable.
Get Cembre 48P670240050SPA today—built for precision, durability, and seamless integration in industrial automation systems.
