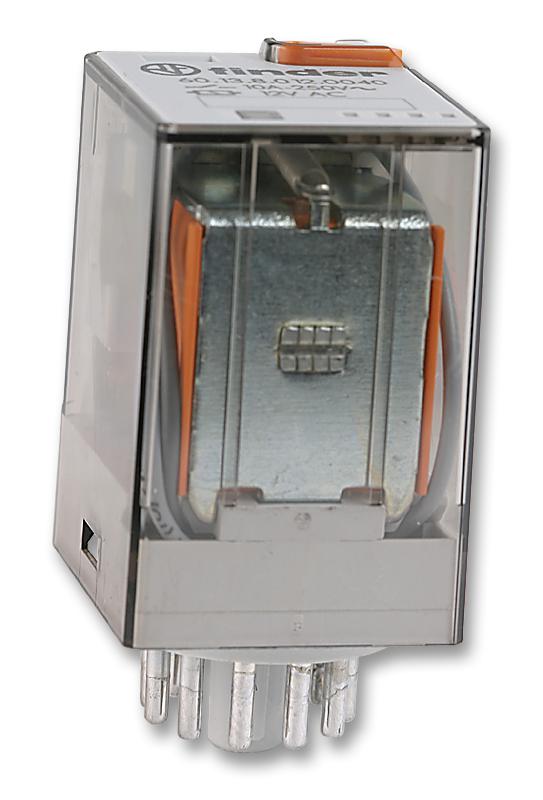

FINDER 601381100040 3 Pole General Purpose Relay
The FINDER 60.13.8.110.0040 is a versatile 3-pole general-purpose relay suitable for a wide range of industrial applications. Designed for reliability, it incorporates cadmium-free contacts and offers both AC and DC coil options. Common uses include control panels, shipyards, hoists, road/tunnel lighting, and wood-processing machines. The relay's robust construction and reliable performance make it a dependable choice for demanding environments. It is a plug-in type relay.
FINDER 601381100040 3 Pole General Purpose Relay Specifications:
- Rated Current: 10 A
- Number of Poles: 3
- Coil Voltage: 6-400 V AC / 6-220 V DC
- Contact Material: AgNi
- Ambient Temperature Range: -40…+70 °C
- Rated Load AC1: 2500 VA
- Rated Load AC15 (230 V AC): 500 VA
- Minimum Switching Load: 500 mW (10/5)
- Mechanical Life: 20 · 10^6 cycles
- Electrical Life at Rated Load AC1: 200 · 10^3 cycles
- Operate/Release Time: 11/4 ms
- Dielectric Strength: 1000 V AC
Buy the 60.13.8.110.0040 FINDER 3 Pole General Purpose Relay | myMectronic
Purchase the FINDER 60.13.8.110.0040 relay securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy FINDER 601381100040?
You can click on the BUY or RFQ button to purchase 601381100040 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 601381100040?
You can download the 601381100040 datasheet or visit the FINDER website for support.
Who is the manufacturer of 601381100040?
FINDER
