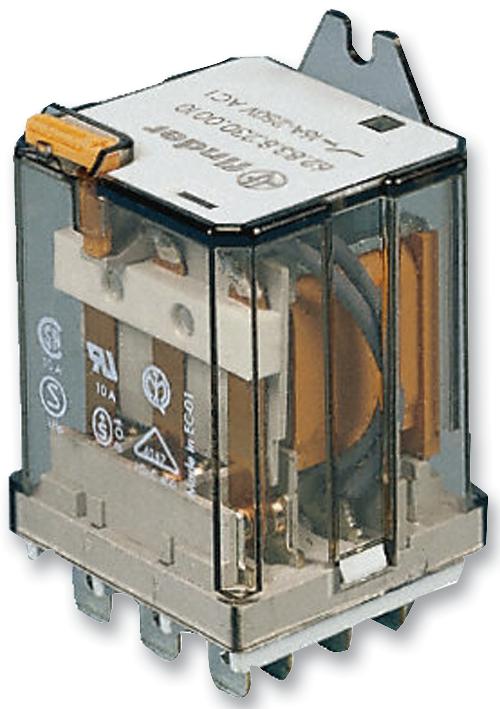

FINDER 628390120300 Power Relay
The Finder 62.83.9.012.0300 is a robust power relay designed for demanding industrial environments. With a 16A rating and options for both AC and DC coils, this relay provides versatile control capabilities. Its reinforced insulation, meeting EN 60335-1 standards, ensures safety with a 6mm clearance and 8mm creepage distance. The relay is available with various mounting options including plug-in, Faston, and flange mount, making it adaptable to diverse applications such as road/tunnel lighting, industrial furnaces, and motor control. It also offers SELV coil-contact separator options and cadmium-free contact material for enhanced performance and environmental compliance.
FINDER 628390120300 Power Relay Specifications:
- Rated Current: 16A
- Maximum Peak Current: 120A
- Rated Voltage: 250V AC / 400V
- Rated Load AC1: 4000 VA
- Rated Load AC15 (230 V AC): 750 VA
- Motor Rating (230/400 V AC): 0.8/1.5 kW
- Breaking Capacity DC1: 16/0.6/0.4 A (30/110/220 V)
- Minimum Switching Load: 1000 mW (10/10)
- Contact Material: AgCdO (Cadmium Free Options)
- Coil Voltage: 6-400V AC / 6-220V DC
- Operating Range: 0.8-1.1 UN
- Mechanical Life: 10 x 10^6 cycles
- Electrical Life: 100 x 10^3 cycles
- Operate/Release Time: 11/4 ms
- Insulation Between Coil and Contacts: 6 kV
- Ambient Temperature Range: -40…+70 °C
