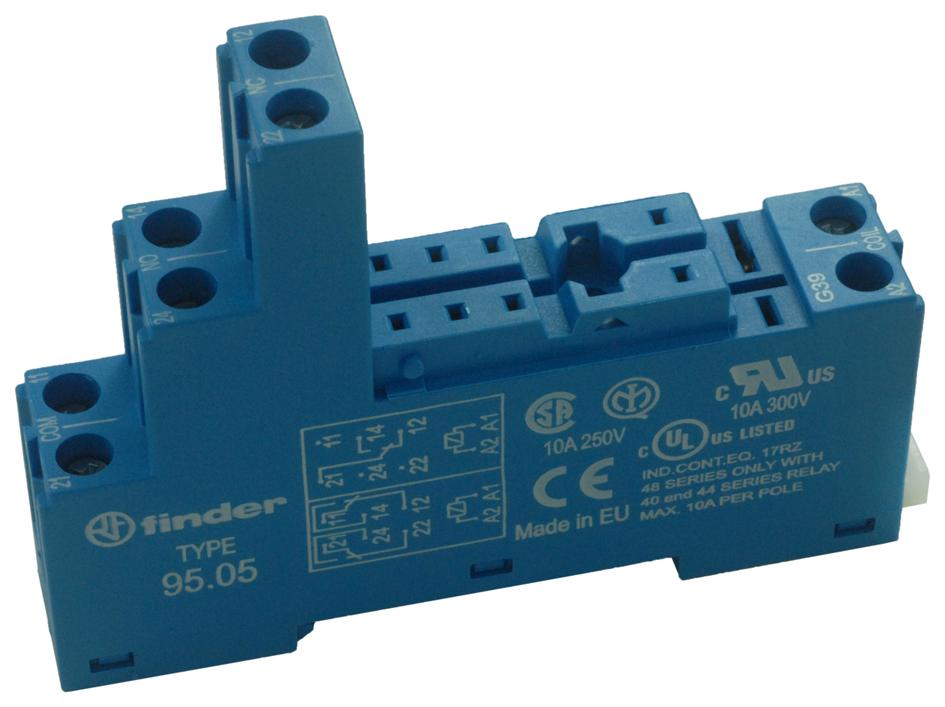

FINDER 9505 Relay Socket
The 95.05 is an 8-pin relay socket equipped with screw terminals, designed for DIN rail or panel mounting. It features coil indication, EMC suppression modules, a jumper link, timer modules, and a plastic retaining and release clip. Compatible with 40 series 40.51 relays, this socket has a blue color, offers a dielectric strength of 6kV Between coil and contacts, an IP20 protection rating, and an ambient temperature range from -40°C to 70°C. Suitable for industrial applications.
FINDER 9505 Relay Socket Specifications:
- Rated values: 10A-250V
- Dielectric strength: 6 kV (1.2/50 ps) between coil and contacts
- Protection category: IP20
- Ambient temperature range: -40°C to +70°C
- Wire strip length: 8 mm
- Max. wire size for sockets: 2x(0.2...1.5) mm²
- Wire size AWG: 2x(24...18)
- Housing color: Blue
- Mounting: Panel or 35 mm rail
- Accessories include: Metal retaining clip, plastic retaining and release clip, jumper link, marker tags
- Rated voltage: 250V AC
- Isolation: 6 kV (1.2/50 ps) between coil and contacts
- Electrical life: 200-10^ cycles at rated load
- Operating temperature: -40°C to +70°C
- Contact material: AgNi
- Insulation: Reinforced (8 mm)
Buy the Buy Findernet 95 Series Relay Socket 9505 Online
Enhance your automation setup with the Findernet relay socket 9505, designed for robust industrial environments. Featuring coil indication, EMC suppression modules, and a comprehensive accessories package, it ensures reliable and safe relay connections. Compatible with 40 series relays, it supports panel and DIN rail mounting with an IP20 protection rating. Operating at -40°C to 70°C, it is ideal for diverse industrial applications, offering durable performance and easy installation. Order online now for fast, trusted delivery.
Order your Findernet 95 Series relay socket 9505 today and ensure reliable connections for industrial automation and control projects.
Frequently Asked Questions
Where can I buy FINDER 9505?
You can click on the BUY or RFQ button to purchase 9505 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 9505?
You can download the 9505 datasheet or visit the FINDER website for support.
Who is the manufacturer of 9505?
FINDER
