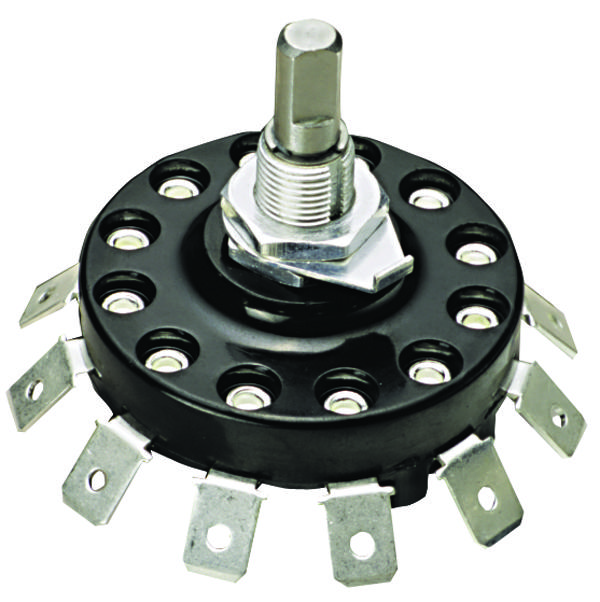

Grayhill 1900106UL rotary switch
The 19001-06UL is a 3-position rotary switch featuring a silver alloy rotor and non-shorting contacts. It belongs to the 19 series and includes a 303 stainless steel shaft, cadmium-plated steel stop rivet, cadmium-plated brass mounting bushing, and a heat-resistant electrical-grade phenolic base with a drive hub. Designed for solder termination, this switch offers rugged construction, low contact resistance of 10 milliohms, an approximate insulation resistance of 100 gigohms, and can withstand an initial voltage breakdown of approximately 2500 VAC between mutually insulated parts. It is suitable for industrial applications.
Grayhill 1900106UL rotary switch Specifications:
- Electrical Rating: 15 Amps, 120 Vac, non-inductive load; 1 Amp, 120 Vdc; 7.5 Amps, 220 Vac non-inductive
- UL Recognition: File Number E35289
- Overload: 50 operations at 125% ac load, 150% dc load
- Endurance: 6000 operations at rated load with 900 Vac dielectric
- Contact Resistance: approximately 10 milliohms
- Insulation Resistance: approximately 100,000 Megohms
- Voltage Breakdown: approximately 2500 Vac
- Rotor Contact: Silver alloy
- Stator Contact: Silver alloy
- Shaft: 303 Stainless steel
- Stop Rivet: Steel, cadmium-plated
- Mounting Bushing: Brass, cadmium-plated
- Base and Drive Hub: Heat resistant, electrical grade phenolic
- Detent Mechanism: Brass, silver-plated
- Terminal: Brass, silver-plated
- Maximum Number of Positions: 11, minimum 2
- Rotational Torque: 30-75 oz-in (new), approx. 22 oz-in after 25,000 cycles
- Contact Force: approx. 12 ounces
Buy the Grayhill 19001-06UL – Reliable Rotary Switch for Industrial Applications
Purchase the Grayhill 19001-06UL rotary switch online today and enjoy reliable performance for industrial control projects. Featuring a durable silver alloy rotor, non-shorting contacts, and a heat-resistant phenolic base, it ensures long-lasting operation. Its rugged construction includes a stainless steel shaft, cadmium-plated steel rivet, and brass bushing, making it suitable for industrial environments. With low contact resistance, high insulation resistance, and an overload capacity, it provides consistent, safe switching. Buy now for fast delivery and trusted quality.
Order your Grayhill Series 19001-06UL rotary switch today and enhance your industrial control projects with dependable, rugged performance.
Frequently Asked Questions
Where can I buy Grayhill 1900106UL?
You can click on the BUY or RFQ button to purchase 1900106UL from an authorized Grayhill distributor.
How do I troubleshoot issues or seek technical support for part 1900106UL?
You can download the 1900106UL datasheet or visit the Grayhill website for support.
Who is the manufacturer of 1900106UL?
Grayhill
