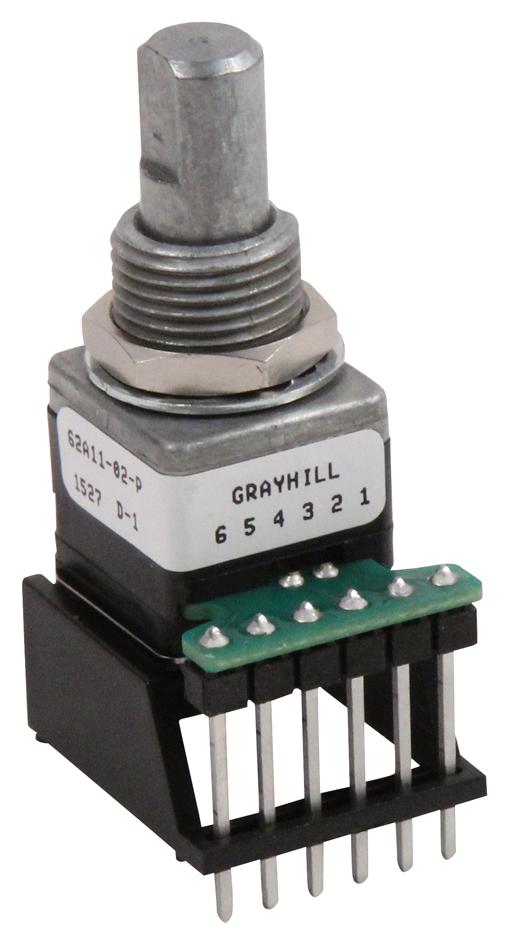

Grayhill 62A1102P Optical Encoder
The 62A11-02-P is an optical encoder with a pushbutton and 0.1-inch center tin-plated brass pin terminations. Featuring a zinc casting bushing, stainless steel shaft retaining ring, reinforced thermoplastic housing, and stainless steel detent spring, this high-torque version provides a distinct rotational feel. It is optically coupled for durability over one million cycles and offers an 11.25° or 32-position angle of throw with a 2-bit quadrature output. It includes a resistive pushbutton rated at 5VDC / 10mA, handling up to 250VAC between insulated parts, suitable for sensing, instrumentation, and medical applications.
Grayhill 62A1102P Optical Encoder Specifications:
- Operating Voltage: 5.0 +.25 Vdc, 3.3 2.125 Vdc (style V only)
- Rotational Life: Minimum 1,000,000 cycles
- Maximum Power Consumption: 150 mW at 5Vdc, 80 mW at 3.3Vdc
- Contact Resistance: Less than 10 ohms
- Pushbutton Life: Minimum 3 million actuations
- Operating Temperature Range: -40°C to 85°C
- Voltage Breakdown: 250 Vac between insulated parts
- Mechanical Mounting: Reinforced thermoplastic housing, zinc or aluminum shaft, stainless steel bushing, brass terminals
- Environmental Ratings: Humidity 90-95% at 40°C, Shock 100G for 6ms, Vibration 15G with 10-2000Hz for 12 hours
- Shaft Push Out Force: Minimum 45 lbs
- Mounting Torque: Max 15 in-lbs
- Connection: Tin-plated terminals, optional cable or connector
- Angle of throw: 11.25° or 32 positions, 15° or 24, 18° or 20, 22.5° or 16, 30° or 12 positions
- Cable Lengths: 2.0 inches to 25.0 inches in 0.5-inch increments
- Code Output: 2-bit quadrature, with optional pushbutton switch
- Interface Compatibility: CMOS, TTL, HCMOS
- Housing Material: Reinforced thermoplastic
- Pushbutton Rating: 5VDC / 10mA
Buy the Grayhill Series 62A Optical Encoder: 62A11-02-P
Order the Grayhill 62A11-02-P optical encoder online today for reliable performance in sensing, instrumentation, and medical systems. This durable device features a high-torque mechanism with a distinct rotational feel, offering options for multiple angle throws and detent configurations. Its robust construction includes stainless steel shafts, thermoplastic housing, and certified environmental resistance, ensuring long-lasting operation across a range of temperatures and conditions. Perfect for precise positioning and control tasks, it combines optical durability with easy integration—order now for fast delivery and installation.
Get Grayhill 62A11-02-P today—built for durability and precise control in sensing and measurement applications.
Frequently Asked Questions
Where can I buy Grayhill 62A1102P?
You can click on the BUY or RFQ button to purchase 62A1102P from an authorized Grayhill distributor.
How do I troubleshoot issues or seek technical support for part 62A1102P?
You can download the 62A1102P datasheet or visit the Grayhill website for support.
Who is the manufacturer of 62A1102P?
Grayhill
