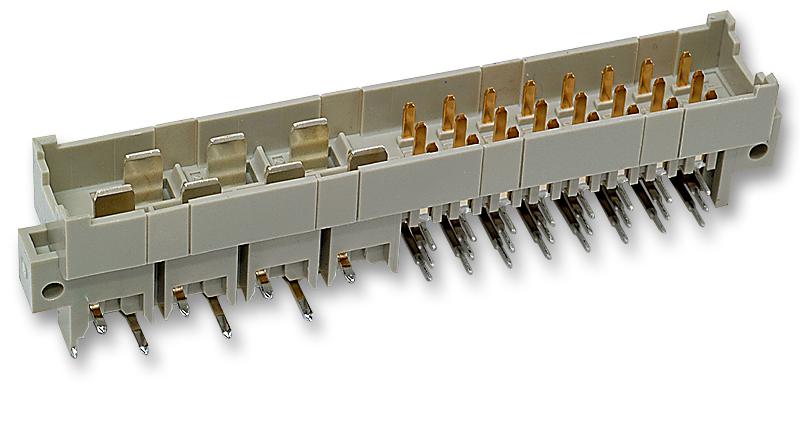

Harting 09061316922 DIN Power Male Connector
The HARTING 09061316922 DIN power male connector is a robust solution for connecting power and signal lines in various industrial applications. Designed for surface mount technology, it adheres to IEC 60603-2 standards, ensuring reliable performance. The connector utilizes copper alloy contacts with gold and tin plating for optimal signal and power transmission. Its PCT thermoplastic construction with glass fiber reinforcement provides durability and heat resistance, making it suitable for demanding environments. The connector's design allows for easy integration into reflow oven processes, streamlining manufacturing workflows. It is ideal for applications in industrial automation, power distribution, and data transmission systems where secure and reliable connections are paramount.
Harting 09061316922 DIN Power Male Connector Specifications:
- Design: IEC 60603-2 types: MH 24+7, 21+5 male
- No. of contacts Signal: 21 or 24
- No. of contacts Power: 5 or 7
- Contact spacing: 2,54 mm x 5,08 mm
- Test voltage Signal: 1550V
- Test voltage Power: 3100V
- Contact resistance Signal: <<br>15 mOhm
- Contact resistance Power: < 8 mOhm
- Insulation resistance: ><br>1012Ohm
- Workingcurrent Signal: 6 A@20°C
- Workingcurrent Power: 15A@20°C
- Temperature range: -55°C … +125°C
- Termination technology: solderpins, faston
- Clearance Signal: min. 1,6 mm
- Clearance Power: min. 4,5 mm
- Creepage Signal: min. 3,0 mm
- Creepage Power: min. 8,0 mm
- Mating cycles PL1: 500
- Mating cycles PL2: 400
- Mating cycles PL3: 50
- UL file: E102079
- RoHS: Yes
- Leadfree: Yes
- Hotplugging: No
- Insulator material: PCT(thermoplastics,glass fiber reinforcement 30%)
- Color: natural-colored
- UL classification: UL 94-V0
- Materialgroupacc IEC 60664-1: II(400<<br>CTI < 600)
- NFF classification: I3, F3
- Contact material: Copper alloy
- Plating termination zone Signal: <br>Sn over Ni
- Plating termination zone Power: Sn over Agover Ni
- Plating contact zone Signal: Au over PdNi over Ni
- Plating contact zone Power: Agover Ni
