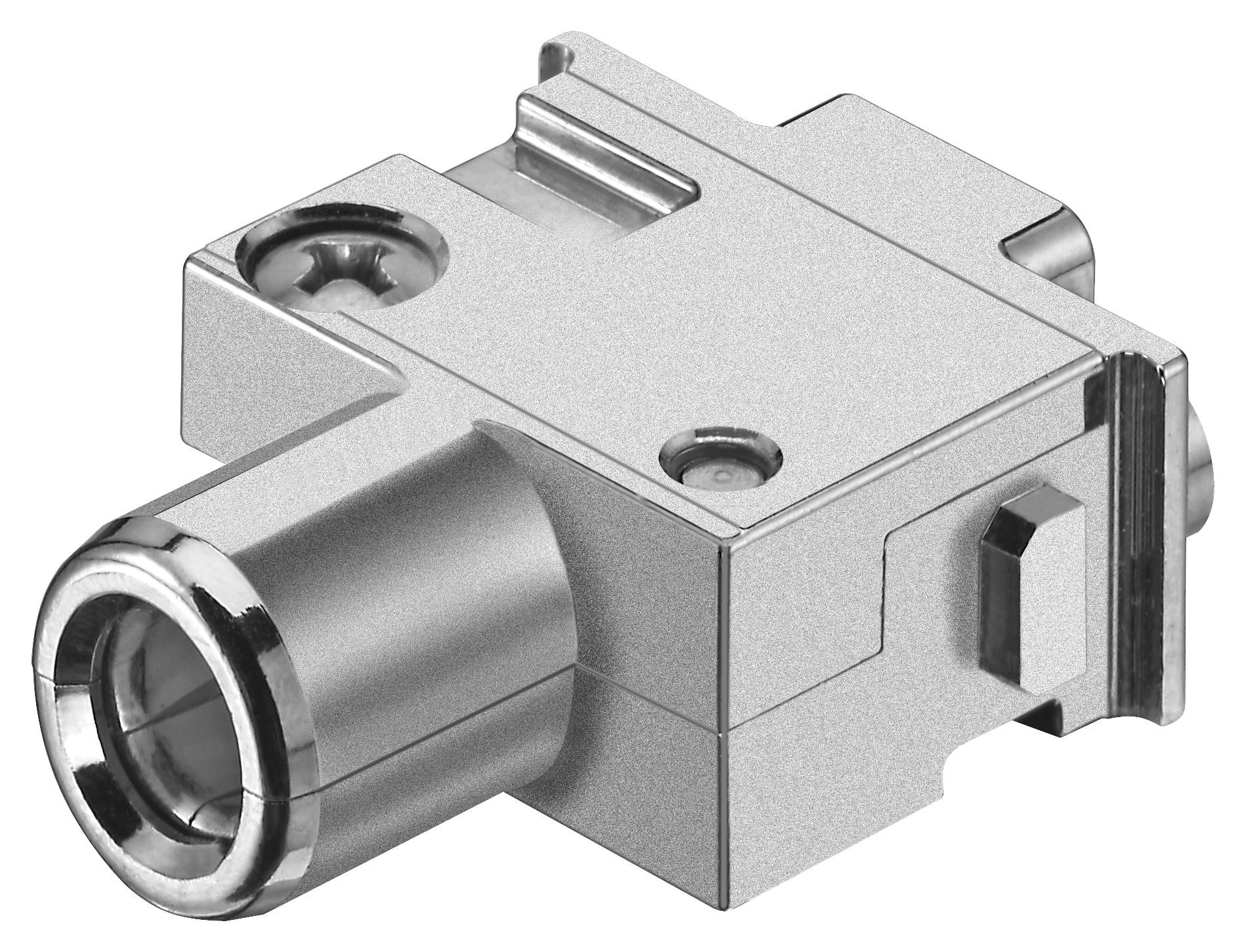

Harting 09140012734 Axial Female Module
The HARTING 09140012734 Han PE-module is a robust and reliable connector designed for demanding industrial environments. This female axial module is constructed with a zinc die-cast, nickel-plated insert and copper alloy contacts with silver plating, ensuring excellent conductivity and corrosion resistance. It supports conductor cross-sections from 22 to 38 mm² and offers a low contact resistance of ≤0.3 mΩ. The module is designed for axial screw termination and is suitable for applications requiring frequent mating cycles (≥500). It is RoHS compliant with exemptions and meets various industry standards including IEC 61984, UL 1977, and CSA-C22.2 No. 182.3.
Harting 09140012734 Axial Female Module Specifications:
- Part Number: 09 14 001 2734
- Specification: Han PE-module fem. axial 38qmm
- HARTING eCatalogue: https://b2b.harting.com/09140012734
- Category: Modules
- Series: Han-Modular®
- Type of module: Han®PE module
- Size of the module: Single module
- Termination method: Axial screw termination
- Gender: Female
- Number of contacts: 1
- Pack contents: PE module with pre-assembled axial screw contact
- Conductor cross-section: 22 ... 38 mm²
- Contact resistance: ≤0.3 mΩ
- Stripping length: 13 mm
- Tightening torque: 2 Nm
- Limiting temperature: -40 ... +125 °C
- Mating cycles: ≥500
- Material (insert): Zinc die-cast, nickel-plated
- Material (contacts): Copper alloy
- Surface (contacts): Silver plated
- RoHS: compliant with exemption
- RoHS exemptions: 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: Not contained
- REACH ANNEX XIV substances: Not contained
- REACH SVHC substances: Lead
- ECHA SCIP number: 5dbb3851-b94e-4e88-97a1-571845975242
- California Proposition 65 substances: Lead, Nickel
- Specifications: IEC 61984
- UL / CSA: UL 1977 ECBT2.E235076
- Packaging size: 1
- Net weight: 76.25 g
- Country of origin: Germany
- European customs tariff number: 85366990
- eCl@ss: 27440217
