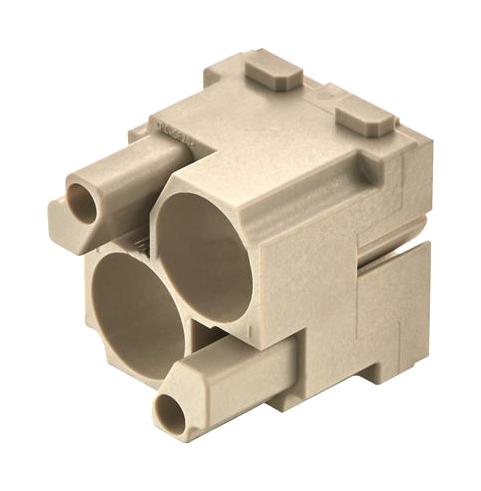

Harting 09140023104 Han Q 5/0 HighTemp Insert
The HARTING Han Q 5/0 HighTemp insert is a robust and reliable solution for connecting electrical components in demanding industrial environments. Its high-temperature rating (-40°C to +200°C) makes it ideal for applications such as automotive, automation, and power distribution. The insert supports conductor cross-sections ranging from 0.14 to 2.5 mm² and offers a rated current of 16A and a rated voltage of 400V. Constructed from liquid crystal polymer (LCP), this insert ensures excellent electrical insulation and mechanical strength. Crimp contacts are required and must be ordered separately.
Harting 09140023104 Han Q 5/0 HighTemp Insert Specifications:
- Part Number: 09 12 805 3104
- Specification: Han Q 5/0 HighTemp-F-c
- HARTING eCatalogue: https://b2b.harting.com/09128053104
- Category: Inserts
- Series: Han®Q High Temp
- Identification: 5/0
- Termination method: Crimp termination
- Gender: Female
- Size: 3 A
- Number of contacts: 5
- PE contact: Yes
- Conductor cross-section: 0.14 ... 2.5 mm²
- Rated current: 16 A
- Rated voltage conductor-earth: 230 V
- Rated voltage conductor-conductor: 400 V
- Rated impulse voltage: 4 kV
- Pollution degree: 3
- Insulation resistance: >1010Ω
- Limiting temperature: -40 ... +200 °C With Han® High Temp components
- Mating cycles: ≥500
- Material (insert): Liquid crystal polymer (LCP)
- Colour (insert): Black
- Material flammability class acc. to UL 94: V-0
- Packaging size: 1
- Net weight: 15 g
- Country of origin: Romania
- European customs tariff number: 85389099
- eCl@ss: 27440205
Buy the 09140023104 HARTING Han Q 5/0 HighTemp Insert | myMectronic
Purchase the HARTING 09140023104 Han Q 5/0 HighTemp Insert securely and efficiently through our online store.
Buy Now
Frequently Asked Questions
Where can I buy Harting 09140023104?
You can click on the BUY or RFQ button to purchase 09140023104 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09140023104?
You can download the 09140023104 datasheet or visit the Harting website for support.
Who is the manufacturer of 09140023104?
Harting
