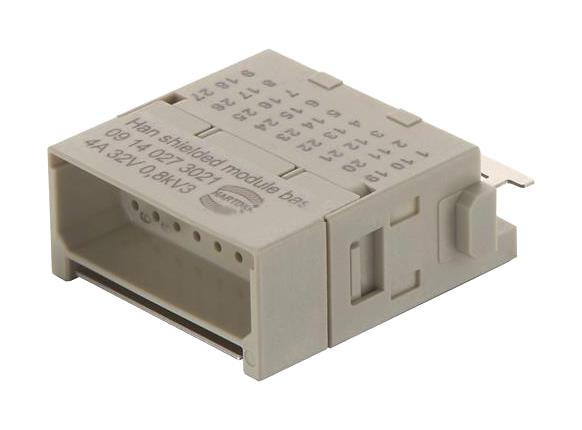

Harting 09140273021 Industrial Connector Module
The Han shielded module basic male is a durable, high-quality industrial connector component designed for robust applications and reliable data transmission. Crafted from flame-retardant polycarbonate with V-0 flammability classification, it features 27 contacts plus shielding for enhanced protection against electromagnetic interference. The module supports crimp termination, rated for 4A and 32V, with an insulation resistance of >10^9 ohms and a rated impulse voltage of 0.8kV. It withstands temperatures from -40°C to +125°C, offers 2500 mating cycles, and includes a 180° shielding element, making it suitable for demanding industrial environments.
Harting 09140273021 Industrial Connector Module Specifications:
- Material: Polycarbonate with V-0 flammability class according to UL 94
- Color: Pebble grey (RAL 7032)
- Contacts: 27 plus shielding
- Termination: Crimp
- Rated current: 4A
- Rated voltage: 32V
- Rated impulse voltage: 0.8kV
- Temperature range: -40°C to +125°C
- Pollution degree: 3
- Insulation resistance: >10^9 ohms
- Mating cycles: 2500
- Shielding: 180° shielding element
- Material properties: Flame-retardant polycarbonate
- Dimensions: Supports conductor cross-section of 0.09 to 0.52 mm²
- Compliance: EN 60664-1, IEC 61984
Buy the Buy HARTING Shielded Module Basic Part Number 09140273021 Online
Enhance your industrial connections with the HARTING shielded module basic, featuring 27 contacts, shielding, crimp termination, and high durability. Made from flame-retardant polycarbonate, it operates efficiently within a temperature range of -40°C to +125°C. Designed for robust environments, it supports 4A current and 32V voltage, with 2500 mating cycles for long-term reliability. This module ensures stable data transmission while protecting against electromagnetic interference, making it an essential component for industrial automation and connector systems.
Order your HARTING SeriesHan-Modular shielded module basic with 27 contacts today and ensure your industrial connectors deliver reliable, high-performance data connections.
Frequently Asked Questions
Where can I buy Harting 09140273021?
You can click on the BUY or RFQ button to purchase 09140273021 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09140273021?
You can download the 09140273021 datasheet or visit the Harting website for support.
Who is the manufacturer of 09140273021?
Harting
