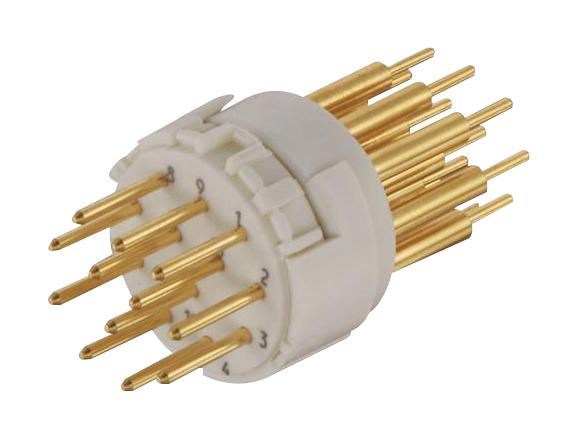

Harting 09151122603 M23 Male Contact Insert
The HARTING Han M23 09151122603 is a high-quality contact insert designed for robust industrial applications. This male insert features 12 contacts and utilizes PCB solder termination for secure connections. Constructed from polyamide with gold-plated copper alloy contacts, it offers excellent electrical performance and durability. Suitable for bulkhead mounted housings, this insert is ideal for applications requiring reliable signal transmission in demanding environments. It is RoHS compliant with exemptions and meets various industry standards, ensuring safety and regulatory compliance.
Harting 09151122603 M23 Male Contact Insert Specifications:
- Part Number: 09 15 112 2603
- Specification: Han M23 12 Male -soldered contact
- HARTING eCatalogue: https://b2b.harting.com/09151122603
- Category: Inserts
- Series: Han®M23 Signal
- Element: Inserts
- Termination method: PCB solder termination
- Gender: Male
- Number of contacts: 12
- Rated current: 8 A
- Rated voltage: 200 V
- Rated impulse voltage: 2.5 kV
- Pollution degree: 3
- Insulation resistance: > 1010Ω
- Limiting temperature: -40 ... +125 °C
- Mating cycles: ≥500
- Material (insert): Polyamide
- Colour (insert): White
- Material (contacts): Copper alloy
- Surface (contacts): Gold plated
- Material flammability class acc. to UL 94: V-0
- RoHS: compliant with exemption
- RoHS exemptions: 6c: Copper alloy containing up to 4 % lead by weight
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: No
- REACH ANNEX XIV substances: No
- REACH SVHC substances: Lead
- UL / CSA: UL 1977 ECBT2.E235076
- Packaging size: 5
- Net weight: 7.4 g
- Country of origin: Germany
- European customs tariff number: 85366990
- eCl@ss: 27440205
Buy the 09151122603 HARTING M23 Male Contact Insert | myMectronic
Purchase the HARTING 09151122603 M23 Male Contact Insert securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Harting 09151122603?
You can click on the BUY or RFQ button to purchase 09151122603 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09151122603?
You can download the 09151122603 datasheet or visit the Harting website for support.
Who is the manufacturer of 09151122603?
Harting
