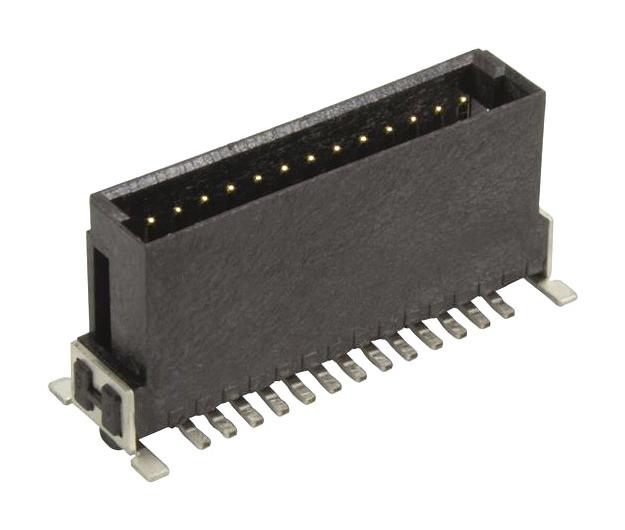

Harting 15130502601000 connector
The har-flex straight male connector is a RoHS-compliant, solderable connector designed for versatile applications with 6 to 100 poles and various stacking heights of 1.75mm, 3.25mm, and 4.85mm. It features high current capacity, voltage ratings up to 500V, and operates within a temperature range of -55°C to +125°C. Suitable for lead-free PCB surfaces like HAL, NiAu, and immersion Sn, it ensures reliable electrical contact with low contact resistance. Its durable insulator made of black LCP offers flame retardancy and high-performance standards.
Harting 15130502601000 connector Specifications:
- Number of contacts: 6 to 100 poles
- Contact spacing: 1.27mm x 1.27mm (0.050" x 0.050")
- Test Voltage: 500V
- Contact resistance: <25 mOhm
- Insulation resistance: see derating diagram
- Working current: according to IEC 60512, at 70°C with 80% derating
- Working temperature range: -55°C to +125°C
- Termination technology: SMT
- Reflow processing temperature: >217°C for 150s
- PCB pad plating: HAL, NiAu, Immersion Sn
- Material: LCP (Liquid Crystal Polymer), Black, UL94-VO
- Rated voltage: 100V/150V depending on installation category
- Contact material: Copper alloy with Sn plating and Au over PdNi
- Coplanarity range: 0.1mm for 6-80 pins, 0.145mm for 82-100 pins
- Mating cycles: PL1 - 500, PL2 - 250
- RoHS compliant, lead-free
- Creepage distance: minimum 0.4mm
Buy the Buy Harting Har-Flex Male Connector Part Number 15130502601000 Online
Order the Harting Har-Flex straight male connector today online and ensure high-quality, reliable electrical connections for your electronic projects. This versatile connector features excellent electrical performance with high current capacity, low contact resistance, and a wide operating temperature range from -55°C to +125°C. Designed for lead-free soldering on various PCB surfaces like HAL, NiAu, and immersion Sn, it offers durability, precise contact spacing, and multiple stacking heights for flexible applications. Secure yours now for superior performance and seamless integration into your electronics.
Buy Harting Har-Flex male connector now and experience unmatched reliability and performance for your electronic assembly needs.
Frequently Asked Questions
Where can I buy Harting 15130502601000?
You can click on the BUY or RFQ button to purchase 15130502601000 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 15130502601000?
You can download the 15130502601000 datasheet or visit the Harting website for support.
Who is the manufacturer of 15130502601000?
Harting
