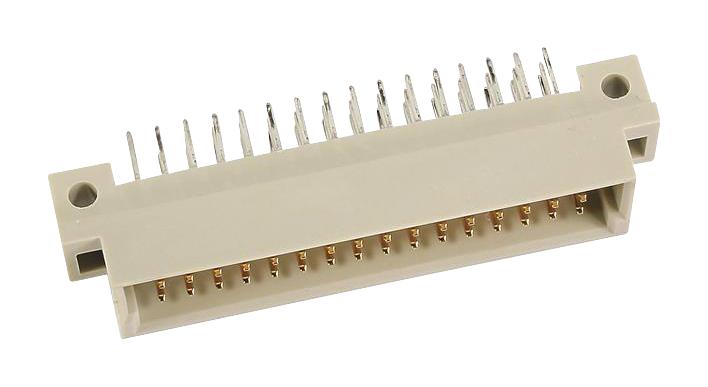

Harting 09231486922 DIN Signal Connector
This DIN Signal male connector features IEC 60603-2 compatibility with varying contact arrangements up to 96 contacts, suitable for industrial and electrical applications. The connector is made of high-quality PBT with glass fiber reinforcement and copper alloy contacts plated with Sn over Ni or gold options for enhanced durability. It supports voltages up to 1000V and currents up to 2A at 20°C. Its temperature range spans from -55°C to +125°C, ensuring reliable operation in harsh environments. Designed for solder pin termination, it includes clearances and insertion/removal forces optimized for durability and ease of use in complex electronic assemblies.
Harting 09231486922 DIN Signal Connector Specifications:
- IEC 60603-2 compatible with types B, 2B, 3B, C, 2C, 3C
- Maximum contacts: 96
- Contact spacing: 2.54 mm
- Test voltage: 1000 V
- Contact resistance: max. 20 mΩ
- Insulation resistance: min. 10^0 Ω
- Working current: max. 2 A at 20°C
- Temperature range: -55°C to +125°C
- Termination: Solder pins
- Clearance & creepage: min. 1.2 mm
- Insertion/withdrawal force: up to 90N depending on contact count
- Soldering: Compatible with dip, flow, or film soldering, protection advised during soldering
- Material: PBT with glass fiber reinforcement, copper alloy contacts with plating options
- RoHS compliant, UL-rated UL 94 VO-0, lead-free
Buy the HARTING Series DIN Signal Connector: 09231486922
Order the HARTING DIN Signal male connector online today and benefit from easy installation, high durability, and reliable electrical performance in industrial environments. Designed for solder pin termination and RoHS compliance, this connector supports up to 96 contacts with a contact spacing of 2.54mm, voltage up to 1000V, and current of 2A at 20°C. Its wide temperature range of -55°C to +125°C makes it ideal for demanding applications. Secure your electronic assemblies with this high-quality, UL-rated connectivity solution available now for fast delivery and competitive pricing.
Buy HARTING series DIN Signal male connector with up to 96 contacts now and experience unmatched reliability, high voltage capacity, and durable solder connection technology.
Frequently Asked Questions
Where can I buy Harting 09231486922?
You can click on the BUY or RFQ button to purchase 09231486922 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 09231486922?
You can download the 09231486922 datasheet or visit the Harting website for support.
Who is the manufacturer of 09231486922?
Harting
