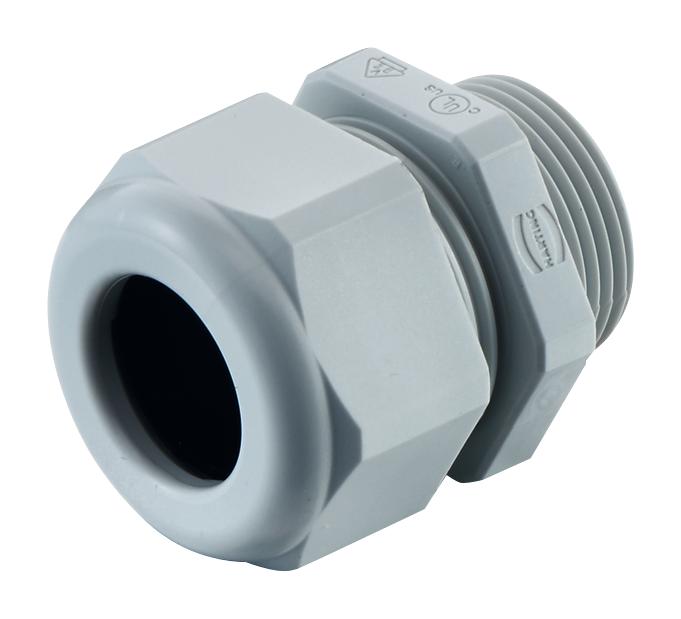

Harting 19000005196 CGM-P Cable Gland Connector
The HARTING Han CGM-P M32x1,5 D.18-25mm cable gland is designed for robust and reliable cable connections in demanding industrial environments. Constructed from polyamide (PA) with a NBR seal, this cable gland offers excellent resistance to chemicals, oils, and extreme temperatures. Its IP68 and IP69/IPX9K ratings ensure protection against dust and water ingress, making it suitable for harsh conditions. The Han CGM-P series is widely used in automation, process engineering, and the energy sector for connecting sensors, actuators, and power supplies.
Harting 19000005196 CGM-P Cable Gland Connector Specifications:
- Tightening torque: ≤6.5 Nm (depending on the cable and the seal insert used)
- Wrench size: 42
- Limiting temperature: -40 ... +100 °C
- Degree of protection IEC 60529: IP68
- Degree of protection ISO 20653: IP69 / IPX9K
- Size: M32
- Clamping range: 18 ... 25 mm
- Width across corners: 46.8 mm
- Material (seal): NBR
- Material (cable glands): Polyamide (PA)
- Colour (accessories): RAL 7035 (light grey)
- Flammability class UL 94: V-0
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII substances: Not contained
- REACH Annex XIV substances: Not contained
- REACH SVHC substances: Not contained
- Approvals: DNV GL
- UL / CSA: UL 514B QCRV.E479780
- CSA-C22.2: QCRV7.E479780
- Packaging size: 10
- Net weight: 39.1 g
- Country of origin: Germany
- European customs tariff number: 39269097
- eCl@ss: 27144432
