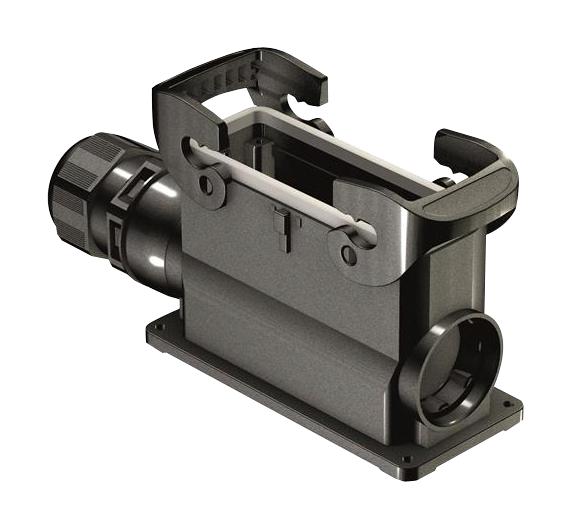

Harting 19433240233 Plastic Enclosure
Han-Eco B series enclosures are durable plastic housings designed for outdoor and indoor use, providing IP66 protection and complying with IEC 61948 and EN 45545-2 standards. Made from flame-retardant polyamide, they weigh significantly less than metal alternatives and support rear mounting of pre-assembled inserts. These versatile, V-0 rated housings accommodate cables from 6 to 28mm diameter, making them ideal for data, signal, power, and telecommunications applications in industrial environments. Their robust construction and modular design ensure reliable protection for electronic components in challenging conditions.
Harting 19433240233 Plastic Enclosure Specifications:
- Material (hood/housing): Polyamide, fibre-glass reinforced
- Material (seal): FPM
- Material (locking): Polyamide
- Colour (hood/housing): RAL 9005 (jet black)
- Colour (seal): RAL 7001 (silver-grey)
- Flammability class: V-0 according to UL 94
- Protection Degree: IP66 according to IEC 60529
- Cable entry: Side entry, 6-28mm clamping range
- Temperature Range: -40°C to +125°C
- Version: Locking type, Double locking, Part number 19433240233
- Limiting temperature: -40... +125 °C
- Number of relockings: 2500
- Standards: IEC 61984, EN 45545-2 R22/R23/R24 HL1-HL3
- Dimensions and weight vary depending on model, designed for rear mounting with pre-assembled inserts
- Certification: UL 94V-0 flammability, IEC and European standards compliance
Buy the HARTING Han-Eco 24B – Reliable Enclosure for Industrial Applications
Order the HARTING Han-Eco 24B plastic enclosure online today to benefit from high IP66 protection, lightweight design, and versatile cable management options. Ideal for outdoor and indoor applications in data, power, and telecommunication sectors, this enclosure supports cables from 6 to 28mm and features robust, flame-retardant polyamide construction. With easy rear mounting for pre-assembled inserts, it offers reliable and flexible protection for sensitive electronics in demanding environments. Shop now for quick delivery and exceptional durability in your projects!
Buy HARTING Han-Eco 24B enclosure now and ensure reliable protection for your electronic components in challenging industrial environments.
