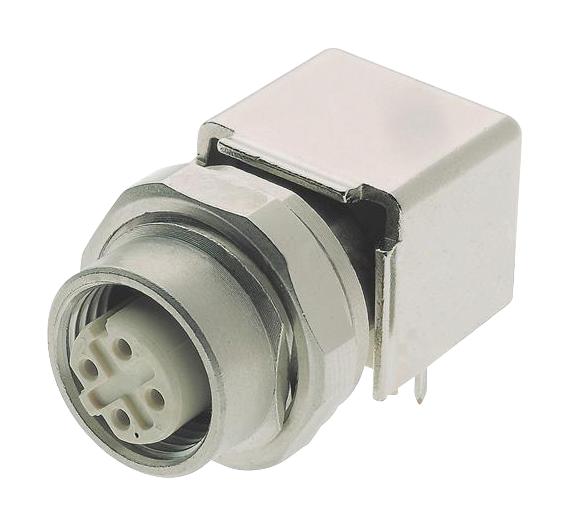

Harting 21033814410 M12 Panel Feed Through Connector
The HARTING 21 03 381 4410 is a robust M12 panel feed through connector designed for reliable data transmission in industrial applications. This angled connector features a D-code, THR termination for PCB mounting, and a screw locking mechanism for secure connections. Constructed with liquid crystal polymer (LCP) and copper alloy contacts with gold plating, it offers excellent electrical performance and durability. It is suitable for applications requiring data rates up to 100 MHz and is compliant with various industry standards including IEC 61076-2-101 and UL 1977.
Harting 21033814410 M12 Panel Feed Through Connector Specifications:
- Part Number: 21 03 381 4410
- Specification: M12 panel feed through/PCB angled D-code
- Series: Circular connectors M12
- Element: PCB adapter
- Termination method: Reflow soldering termination (THR)
- Gender: Female
- Shielding: Shielded
- Number of contacts: 4
- Coding: D-coding
- Locking type: Screw locking
- Details: Coding bottom left = Cable entry direction on the angled connector: to the right
- Rated current: 4 A
- Rated voltage: 50 V
- Rated impulse voltage: 1.5 kV
- Pollution degree: 3
- Transmission characteristics: Cat. 5 Class D up to 100 MHz
- Overvoltage category: III
- Data rate: 10 Mbit/s, 100 Mbit/s
- Insulation resistance: >108Ω
- Contact resistance: ≤10 mΩ
- Tightening torque: 2 Nm Lock nut
- Limiting temperature: -40 ... +85 °C
- Mating cycles: ≥100
- Degree of protection: IP20
- Isolation group: I (600 ≤ CTI)
- Material (insert): Liquid crystal polymer (LCP)
- Material (contacts): Copper alloy
- Surface (contacts): Au over Ni Mating side
- Material (hood/housing): Zinc die-cast
- Flammability class: V-0
- RoHS: compliant with exemption
- RoHS exemptions: 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: Not contained
- REACH ANNEX XIV substances: Not contained
- REACH SVHC substances: Lead
- ECHA SCIP number: 0d7d3693-d625-47ab-934a-d241bf72c86e
- California Proposition 65 substances: Lead, Nickel
- Specifications: IEC 61076-2-101
- UL / CSA: UL 1977 ECBT2.E235076, CSA-C22.2 No. 182.3 ECBT8.E235076
- PROFINET: Yes
- Packaging size: 10
- Net weight: 2 g
- Country of origin: Romania
- European customs tariff number: 85366990
- eCl@ss: 27460201
