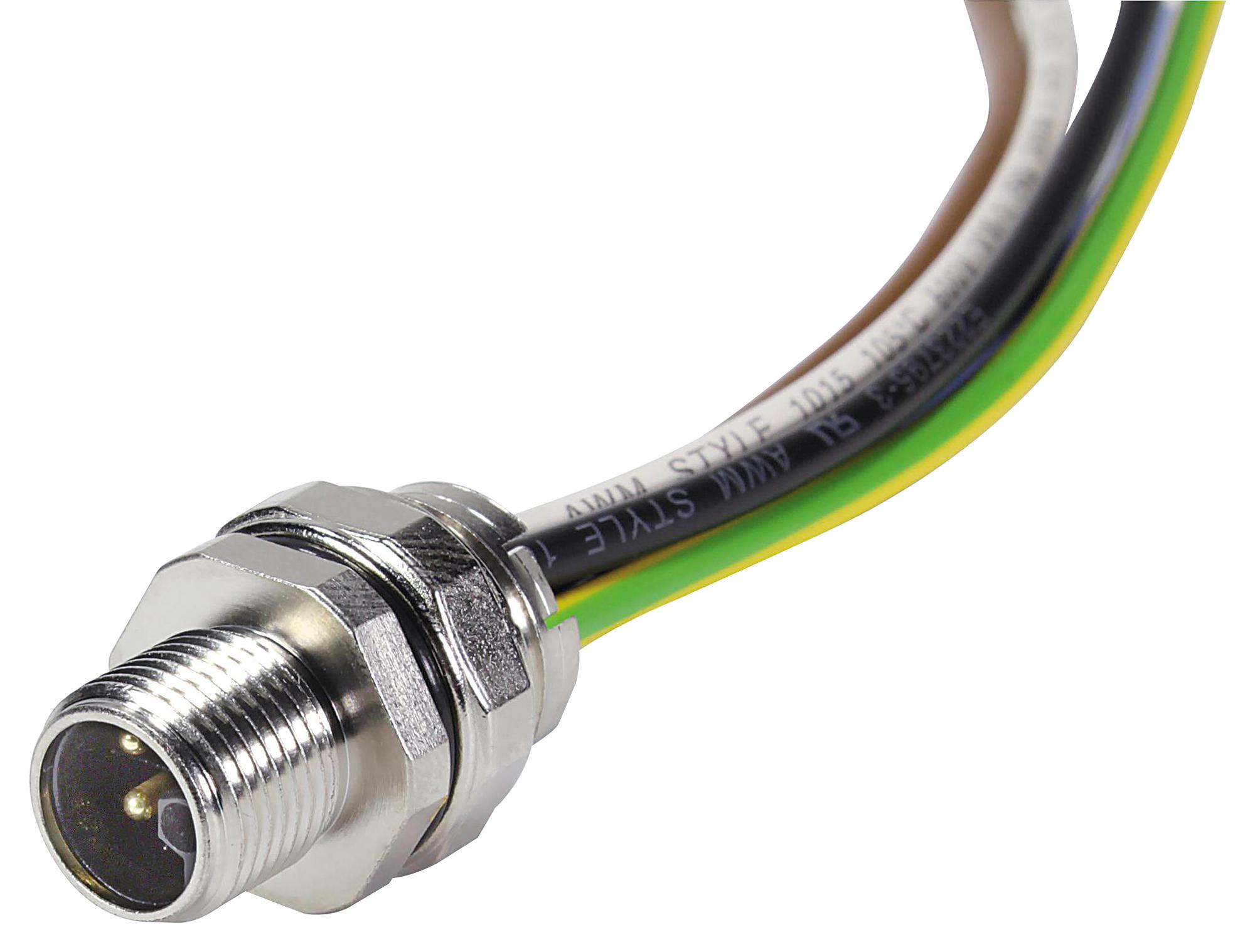

Harting 21035961505 Industrial Circular Connector
The PFT male L-coded connector is a robust circular connector designed for industrial automation, sensor-actuator systems, and automation technology. It features an unshielded male connection with five contacts, including four power contacts, rated at 16A and 63V. Made from polyamide, copper alloy contacts with gold-over-nickel plating, it ensures high reliability with IP65/IP67 degree of protection and a maximum of 2100 mating cycles. Suitable for a conductor cross-section of 1.5 mm² (AWG 16), it is ideal for demanding industrial environments requiring secure, durable connections.
Harting 21035961505 Industrial Circular Connector Specifications:
- Contacts: 5 (4 power, 1 special)
- Rated current: 16A
- Rated voltage: 63V
- Insulation resistance: >10 MΩ
- Contact resistance: 30 mΩ
- Tightening torque: 2.0 Nm
- Maximum mating cycles: 2100
- Degree of protection: IP65/IP67 (mated)
- Contact Material: Copper alloy with Au over Ni plating
- Housing Material: Zinc die-cast
- Locking: Screw locking
- Conductor cross-section: 1.5 mm² (AWG 16)
- Operating temperature: -40°C to +85°C
- Pollution degree: 3
- Overvoltage category: II
- Certification: UL, CSA, IEC 61076-2-111
- RoHS compliant
Buy the HARTING 21035961505 – Reliable Circular Connector for Industrial Applications
Order the HARTING PFT male L-coded circular connector today online to ensure secure, durable, and easy-to-install connections for industrial automation, sensor technology, and factory automation environments. Designed with high-quality materials, IP67 protection, and a rated current of 16A, this connector guarantees dependable performance even in demanding conditions. Its robust construction and high mating cycle count make it a perfect choice for automation projects requiring precision, safety, and longevity. Purchase now for quick delivery and reliable operation in your industrial setup.
Buy HARTING 21035961505 now and experience unmatched reliability and performance for industrial automation and sensor connections.
Frequently Asked Questions
Where can I buy Harting 21035961505?
You can click on the BUY or RFQ button to purchase 21035961505 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 21035961505?
You can download the 21035961505 datasheet or visit the Harting website for support.
Who is the manufacturer of 21035961505?
Harting
