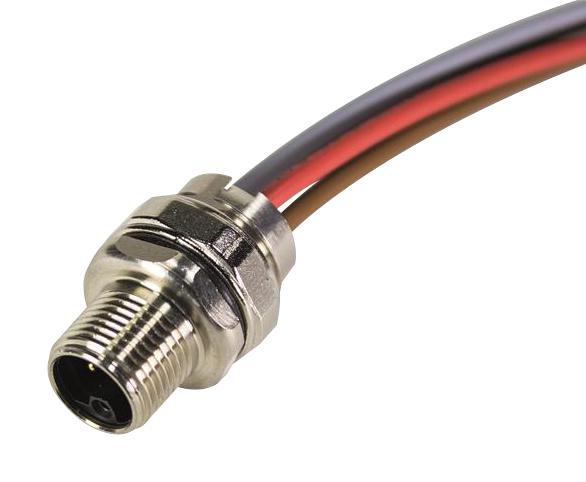

Harting 21035961506 Power Connector
The PFT male front L-coded connector is a robust circular connector designed for panel feed-through applications. It features unshielded contact points suitable for 1.5mm² conductors, supporting a rated current of 16A and rated voltage of 63V. Its screw locking ensures reliable connection, while the IP65/IP67 ratings guarantee protection against dust and water. Constructed with high-quality copper alloy contacts Gold plated, and a durable polyamide housing, this connector withstands temperatures from -40°C to +85°C, making it ideal for industrial automation and control systems requiring secure, industrial-grade connections.
Harting 21035961506 Power Connector Specifications:
- Conductor Cross-section: 1.5 mm²
- Rated Current: 16A
- Rated Voltage: 63V
- Rated Impulse Voltage: 1.5kV
- Pollution Degree: >10°
- Insulation Resistance: 10 MΩ
- Contact Resistance: 30 mΩ
- Environmental Temperature Range: -40°C to +85°C
- Tightening Torque: 2Nm
- Mating Cycles: 2100
- Degree of Protection: IP65/IP67
- Material (insert): Polyamide
- Material (contacts): Copper alloy, gold plated
- Housing Material: Zinc die-cast
- Locking Type: Screw locking
Buy the HARTING Series Power Connectors: 21 03 596 1506
Order the HARTING Power Connector 21 03 596 1506 online today to enjoy superior electrical connectivity for industrial environments. This unshielded, front-mounted module supports 1.5mm² conductors with a rated current of 16A and voltage of 63V, ensuring robust performance. Its IP65/IP67 protection, screw locking, and high-temperature resilience make it ideal for automation systems, control panels, and industrial equipment. Precise engineering and durable materials guarantee long-lasting, secure connections in demanding applications. Buy now to enhance your industrial setup with reliable, high-quality connectors.
Buy HARTING 21 03 596 1506 male front L-coded connector now and experience unmatched reliability and industrial performance.
Frequently Asked Questions
Where can I buy Harting 21035961506?
You can click on the BUY or RFQ button to purchase 21035961506 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 21035961506?
You can download the 21035961506 datasheet or visit the Harting website for support.
Who is the manufacturer of 21035961506?
Harting
