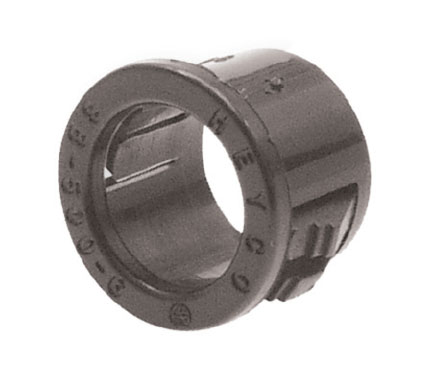

Heyco Products 2049 Nylon Snap Bushing
Heyco Snap Bushings are designed to provide secure and insulated mounting solutions for a wide range of cables, including electrical, telecommunications, tubing, hose, rope, and utility lines. The innovative design incorporates locking fingers that easily snap into holes with fingertip pressure, accommodating panel thicknesses up to .125˝. Available in multiple sizes to fit hole diameters from .250˝ to .875˝, these bushings offer a versatile and reliable solution for cable management in various industrial applications. Constructed from durable Nylon 6/6, they are recognized under Underwriters’ Laboratories and certified by Canadian Standards Association, ensuring high-quality performance and safety.
Heyco Products 2049 Nylon Snap Bushing Specifications:
- Mounting Hole Diameter Range: 0.250˝ (6,4 mm) to 0.875˝ (22,2 mm)
- Material: Nylon 6/6
- Flammability Rating: 94V-2
- Material Temperature Index: 257°F (125°C) – Maximum temperature on part not to exceed 221°F (105°C)
- Push Back Force: 35 pounds
- Colors: Standard colors black and white. Consult Heyco for other colors.
Buy the 2049 HEYCO PRODUCTS Nylon Snap Bushing | myMectronic
Purchase HEYCO PRODUCTS 2049 Nylon Snap Bushings securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Heyco Products 2049?
You can click on the BUY or RFQ button to purchase 2049 from an authorized Heyco Products distributor.
How do I troubleshoot issues or seek technical support for part 2049?
You can download the 2049 datasheet or visit the Heyco Products website for support.
Who is the manufacturer of 2049?
Heyco Products
