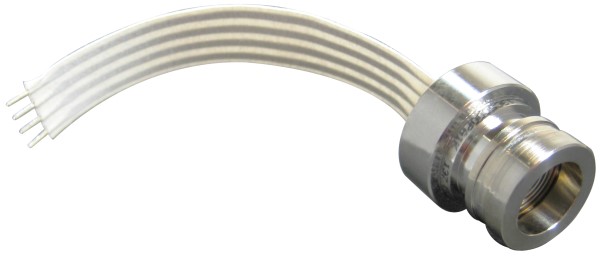

Honeywell 13C2000PA1L Stainless Steel Pressure Sensor
Honeywell’s 13 mm Series stainless steel pressure sensors are engineered for high-pressure applications involving hostile media in demanding environments. Featuring a rugged, isolated stainless steel package and utilizing Honeywell’s proven piezoresistive semiconductor sensor chip, these sensors deliver exceptional reliability, stability, and accuracy. Designed for further package integration in OEM applications, they boast a weld-ring collar and back support ring for high cycle life capability. Available with various pressure ranges and supply options, these sensors are suitable for industrial controls, hydraulic systems, and tank pressure monitoring, ensuring robust and dependable performance.
Honeywell 13C2000PA1L Stainless Steel Pressure Sensor Specifications:
- Compensated temperature range: 0°C to 82 °C [32 °Fto180°F]
- Operating temperature range: -40°C to125°C [-40°Fto257 °F]
- Storage temperature range: -40°C to125°C [-40°Fto257 °F]
- Vibration: 10 G at 20Hz to 2000Hz
- Shock: 100 G for 11 ms
- Life: 1 million cycles min.
- Insulation resistance: 100 mΩ at 50 Vdc
- Voltage version “K” Supply voltage: +15Vdc
- Voltage version “L” Supply current: +2.0 mA
- Zero pressure offset: -2 to +2 mV
- Pressure non-linearity: ±0.1 to ±0.25 %FSS
- Pressure hysteresis: ±0.015 to ±0.030 %FSS
- Repeatability: ±0.010 to ±0.030 %FSS
- Temp. effect on span: ±0.5 to ±1.0 %FSS
- Temp. effect on offset: ±0.5 to ±1.0 %FSS
- Thermal hysteresis: ±0.1 to ±0.3 %FSS
- Long-term stability of offset and span: ±0.1 to ±0.3 %FSS
- Response time: 0.1 ms
- Common mode voltage (voltage version “K”): 0.50 to 2.0 Vdc
- Input resistance (current version “L”): 2.0 to 8.0 kΩ
- Input resistance (voltage version “K”): 8.0 to 50 kΩ
- Output resistance: 3.0 to 6.0 kΩ
- Pressure range: 0 psi to 2000 psi
- Full scale span: 98mV to 102 mV
- Proof pressure: 6000 psi
- Burst pressure: 10,000 psi
