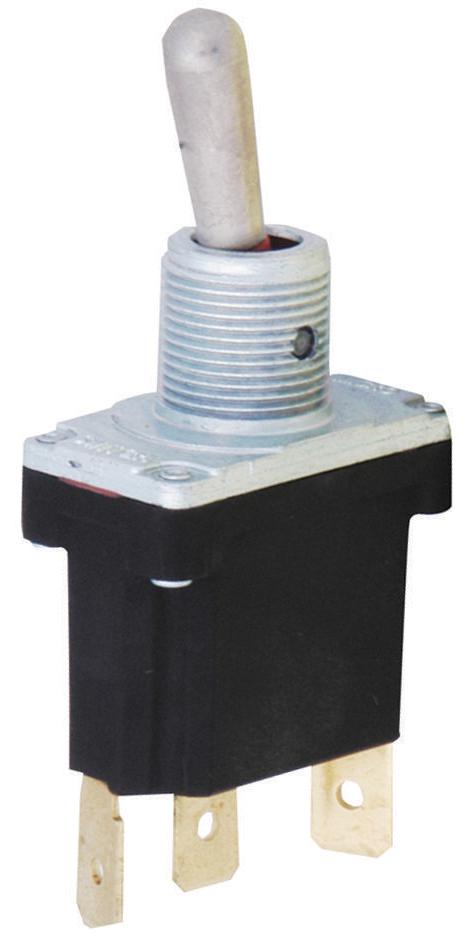

Honeywell 31NT913 Commercial Grade Toggle Switch
Honeywell MICRO SWITCH™ NT Series toggle switches provide a robust and economical solution for a wide range of commercial applications. Featuring a seal between the toggle lever and bushing, and between the cover and case, these switches are well-suited for outdoor environments exposed to vibration, temperature extremes, dust, and water. The optional “Easy Start” threaded bushing simplifies installation, while the panel stand-off with O-ring provides a uniform panel height and seal. Available with various circuitry options and termination methods, the NT Series offers versatility and reliability for industrial and commercial use.
Honeywell 31NT913 Commercial Grade Toggle Switch Specifications:
- Switch Type: Toggle Switch
- Series: MICRO SWITCH™ NT Series
- Sealing: NEMA 3, 3R, 4, 13 and IP67/68
- Operating Temperature: -40 °C to 71 °C [-40 °F to 160 °F]
- Actuators: Standard, locking, special design, tab
- Action: 2- or 3- position; momentary and maintained
- Mounting Bushing: 15/32 in (0.47 in) Ø
- Circuitry: SPST, SPDT, DPST, DPDT, 4PST, 4PDT
- Terminations: Screw, solder, quick connect
- Contacts: Silver alloy, gold-plated
- Amp Rating: Up to 20 A (resistive)
- Approvals: UL, CSA, CE
- Dimensions: 26,7 mm H x 33,5 mm W x 22,6 mm D [1.05 in H x 1.32 in W x 0.89 in D]
- Electrical Ratings (L192): 10 amps, 125, 250, 277 Vac; ¼ Hp, 125 Vac; ½ Hp, 250, 277 Vac; 3 amps, 125 Vac
- Electrical Ratings (L191): 15 amps, 125, 250, 277 Vac; ½ Hp, 125 Vac; 1 Hp, 250, 277 Vac; 5 amps, 125 Vac
