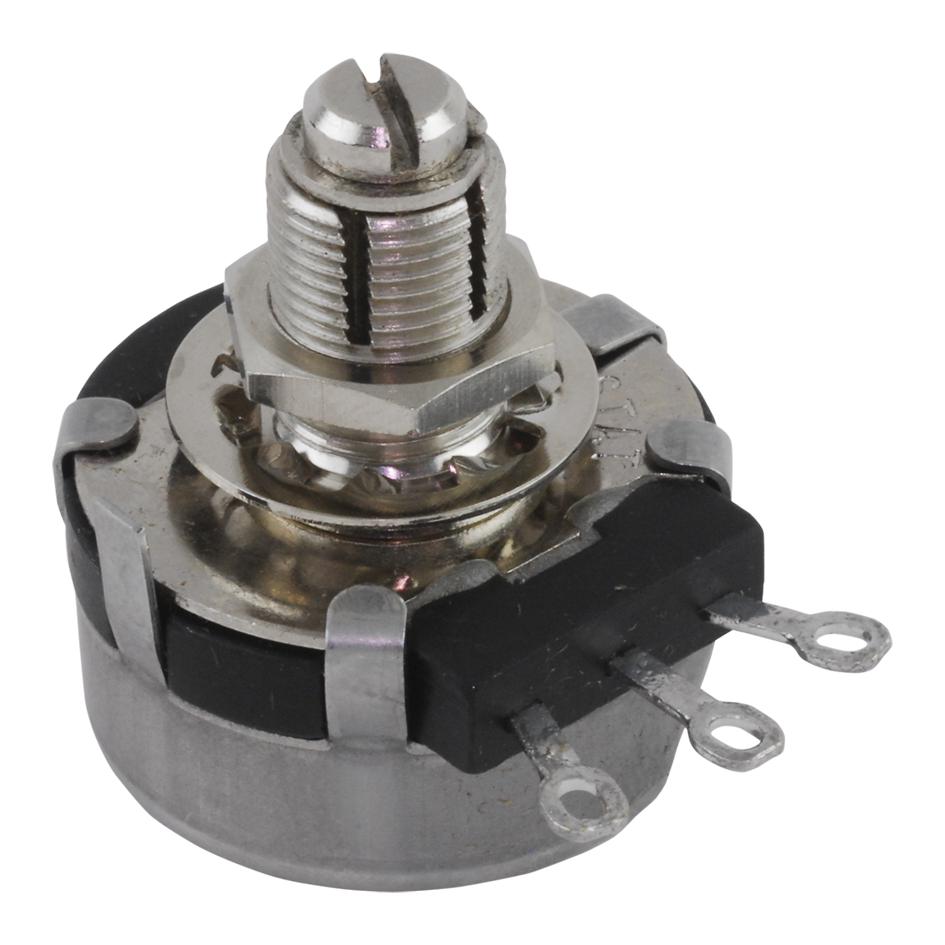

Honeywell RV4LAYSA205B Precision Rotary Potentiometer
The RV4LAYSA205B is a 1-turn, 1-gang panel-mount rotary potentiometer engineered for durability and precise control in industrial applications. Compliant with MIL-PRF-94 standards, it features a 2W power rating, conductive plastic resistive element, nickel-plated brass shaft, and locking bushing for stable operation. This linear taper potentiometer offers smooth voltage adjustment with solder lug terminals, a screwdriver slot, and a slotted shaft, optimized for position transducers and control systems. Capable of 25,000 cycles lifespan, it operates efficiently from -55°C to 120°C for versatile use.
Honeywell RV4LAYSA205B Precision Rotary Potentiometer Specifications:
- Power Rating: 2 watts maximum continuous
- Resistance Range: 50Ω to 5 Megohms, linear
- Resistance Tolerance: up to +20%
- Effective Rotation: 270° +10°/-0°
- Temperature Range: -55°C to +120°C
- Switch Compatibility: None
- Shaft Type: Nickel-plated brass, slotted
- Bushing Lengths: 1/4 in., 3/8 in., 1/2 in., 7/8 in., 1 1/4 in., 2 1/2 in.
- Mounting: Panel-mount, with locking bushing
- Terminal Type: Solder lug
- Rotational Life: 25,000 cycles
- Environmental Rating: MIL-PRF-94 compliant
- Operating Voltage: Up to 500V DC across terminals
Buy the Brand Series Potentiometer: RV4LAYSA205B
Order the RV4LAYSA205B online today to experience a high-quality, MIL-PRF-94 compliant rotary potentiometer designed for durability and accuracy. With a 2W power rating, linear taper, and a lifespan of 25,000 cycles, this device ensures precise control in demanding environments. Its nickel-plated brass shaft, locking bushing, and solder lug terminals make installation and adjustment straightforward. Operating reliably between -55°C and 120°C, this potentiometer is ideal for position transducers, industrial controls, and automation systems, delivering consistent performance over time.
Get Brand RV4LAYSA205B today—built for precision and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy Honeywell RV4LAYSA205B?
You can click on the BUY or RFQ button to purchase RV4LAYSA205B from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part RV4LAYSA205B?
You can download the RV4LAYSA205B datasheet or visit the Honeywell website for support.
Who is the manufacturer of RV4LAYSA205B?
Honeywell
