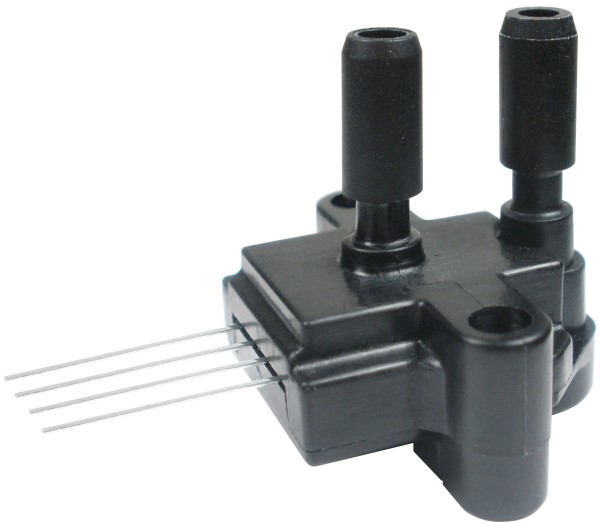

Honeywell SSCSNBN060PAAA5 Standard Accuracy Pressure Sensor
The Honeywell TruStability SSC Series is a board mount pressure sensor designed for accurate and reliable pressure measurement across a range of applications. Utilizing piezoresistive silicon technology, it provides both analog and digital output options, with full calibration and temperature compensation for enhanced performance. Suitable for non-corrosive gases and liquids, the SSC Series offers flexibility and stability, minimizing system calibration needs and improving overall system efficiency. Its small size and low power consumption make it ideal for integration into various devices.
Honeywell SSCSNBN060PAAA5 Standard Accuracy Pressure Sensor Specifications:
- Pressure Range: ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2O to ±150 psi
- Output: Ratiometric analog; I[2] C- or SPI-compatible 14-bit digital output (min. 12-bit sensor resolution)
- Temperature Range: -20 °C to 85 °C [-4 °F to 185 °F]
- Power Supply: 3.3 Vdc or 5.0 Vdc
- Accuracy: ±0.25 %FSS BFSL
- TEB Components: Offset, Full Scale Span, Pressure Non-Linearity, Pressure Hysteresis, Pressure Non-Repeatability, Thermal Effect on Offset, Thermal Effect on Span, Thermal Hysteresis
- Package Size: 10 mm x 10 mm [0.39 in x 0.39 in]
- Moisture Sensitivity Level: IPC/JEDEC J-STD-020D.1 RequirementS
- Power Consumption: Less than 10 mW (typ.)
- Application: Absolute, gage, or differential pressures
Buy the SSCSNBN060PAAA5 HONEYWELL Standard Accuracy Pressure Sensor | myMectronic
Purchase the Honeywell SSCSNBN060PAAA5 pressure sensor securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell SSCSNBN060PAAA5?
You can click on the BUY or RFQ button to purchase SSCSNBN060PAAA5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part SSCSNBN060PAAA5?
You can download the SSCSNBN060PAAA5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of SSCSNBN060PAAA5?
Honeywell
