Honeywell V15W2EZ100W2 Hazardous Location Switch

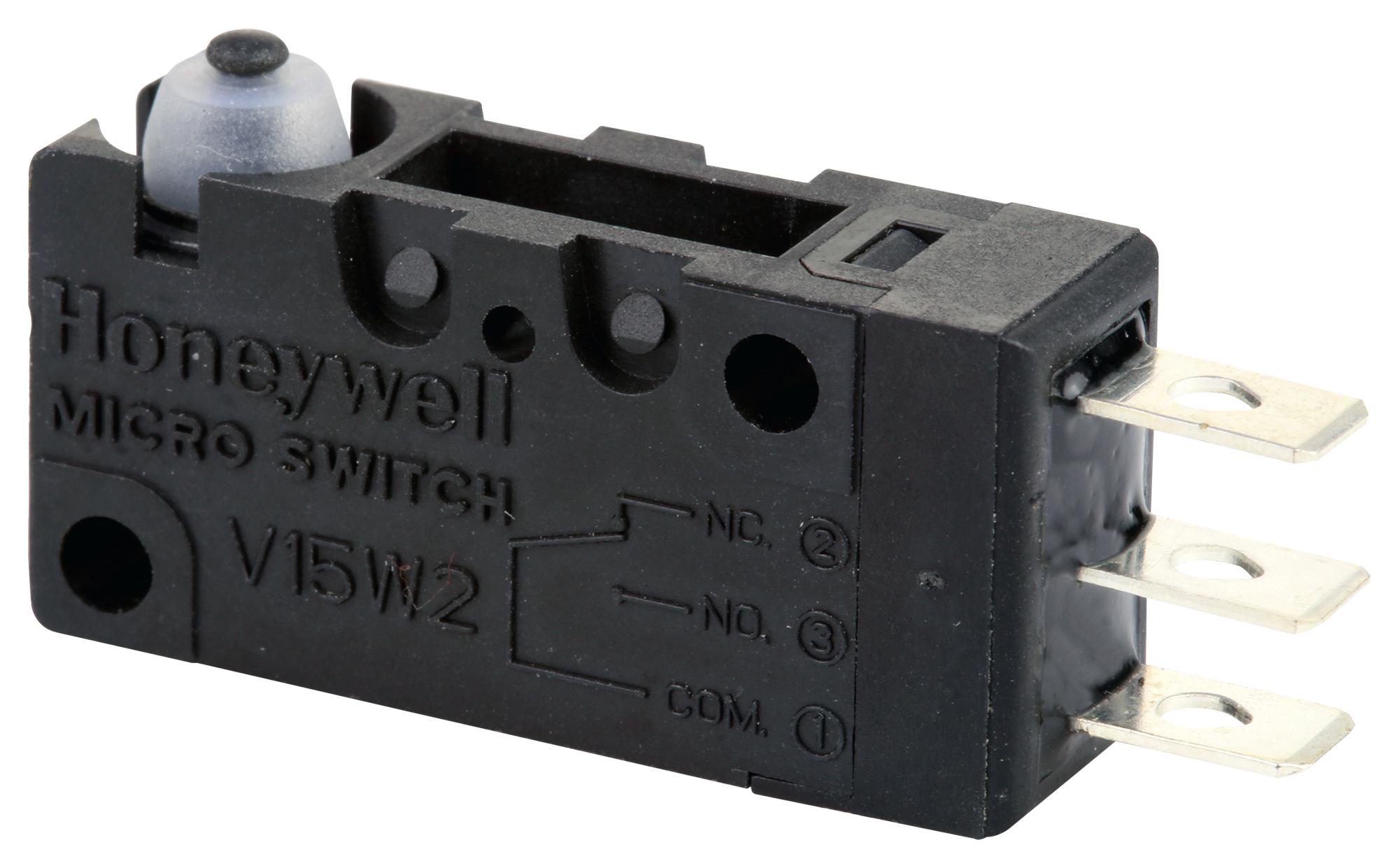

The Honeywell MICRO SWITCH V15W2 Series is a class-leading, precision snap-action switch designed for hazardous environments. Enclosed in a durable plastic case, it features environmentally sealed contacts to prevent the entry of flammable gases, minimizing ignition risks in zones with explosive atmospheres. Approved for zone 2 hazardous locations, it offers a variety of actuators and electrical ratings. The switch boasts a long mechanical life of over one million cycles, quick-connect terminals, and certifications including UL, cUL, ENEC, and IEC Ex. It is ideal for refrigeration, HVAC, valve automation, and appliances using eco-friendly refrigerants, ensuring safety and reliability worldwide.
Honeywell V15W2EZ100W2 Hazardous Location Switch Specifications:
- Operating temperature: -25°C to 85°C
- Electrical ratings: 5A, 125/250 Vac, 10,000 cycles
- Mechanical life: over 1,000,000 cycles
- Contact material: Silver alloy
- Housing material: PBT thermoplastic polyester
- Sealing: IP67 equivalent (terminals sealed)
- Switch circuitry: SPDT, SPNO, SPNC
- Operating force: 100 gf or 200 gf
- Termination: Quick connect, 4.8 mm x 0.5 mm
- Certifications: UL, cUL, ENEC, CQC, IEC Ex
- IEC Ex approval: Ex nC IIA T5 Ge
- Dimensions: Refer to technical drawings
- Housing: Plastic case with variety of actuators
- Dielectric strength: 1000 Vac for 1 minute
- Insulation resistance: ≥100 MΩ at 500 Vdc
- Housing durability: Designed for harsh environments
- Application: Hazardous location machinery, refrigeration, HVAC, valves
Buy the Honeywell V15W2 – Reliable Hazardous Location Switch for Industrial Applications
Order the Honeywell V15W2 hazardous location switch today online to ensure safety, durability, and compliance in explosive atmospheres. Featuring environmentally sealed contacts, multiple actuator options, and certifications like IEC Ex and UL. This switch is ideal for refrigeration units, HVAC, valve control, and appliances using eco-friendly refrigerants. Its long-lasting design supports over a million cycles, making it suitable for critical industrial applications. Take advantage of our quick online purchase to safeguard your equipment and meet safety standards effortlessly.
Buy Honeywell V15W2 now and experience unmatched reliability and performance in hazardous environments with certified safety features.
Frequently Asked Questions
Where can I buy Honeywell V15W2EZ100W2?
You can click on the BUY or RFQ button to purchase V15W2EZ100W2 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part V15W2EZ100W2?
You can download the V15W2EZ100W2 datasheet or visit the Honeywell website for support.
Who is the manufacturer of V15W2EZ100W2?
Honeywell
