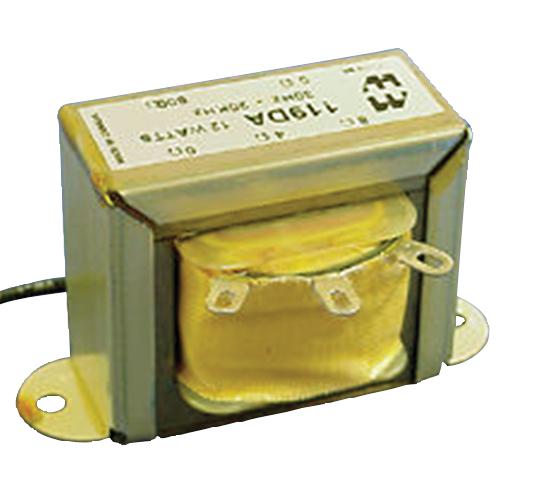

Hammond Manufacturing 119DA Audio Transformer
The 119DA is a 12W, 600-ohm panel mount isolation transformer designed for audio applications. It features a large core area for excellent low-frequency response, high-quality 29M6 laminations, and concentric winding for optimal coupling. Developed with input from the Collins Collectors Association, it facilitates matching high-impedance outputs to modern low-impedance speakers or vintage high-impedance speakers with newer equipment. Operating from 30Hz to 20kHz with a ±1 dB response at full power, it's suitable for high-fidelity audio and vintage radio setups. Its compact, durable design includes a 2-hole bracket mount, 0.19mm hole spacing, and handles up to 12 watts power.
Hammond Manufacturing 119DA Audio Transformer Specifications:
- Power Rating: 12 Watts
- Frequency Response: 30 Hz to 20 kHz (+/- 1 dB at full power, 1 kHz)
- Primary Impedance: 600 Ohms
- Secondary Impedance: 8 Ohms with a 4 Ohm center tap
- Core Material: 29M6 laminations for low distortion
- Winding Type: Concentric for excellent coupling
- Mounting: Two-hole bracket, hole centers 2 and 13/16 inches, hole diameter 0.19 inches
- Dimensions: Height 2.00 inches, Width 3.28 inches, Depth 2.35 inches
- Weight: 1 pound 4 ounces
- Operating Temperature: Not specified but typically robust for audio use
- Design: Isolation type transformer with separate primary and secondary
Buy the Buy Hammond 119DA Audio Transformer Part Number 119DA Online
Purchase the Hammond 119DA audio transformer online today for high-quality audio matching applications. Designed for 12W power handling with a frequency response from 30Hz to 20kHz, it facilitates seamless compatibility between vintage high-impedance speakers and modern low-impedance systems. Its robust construction and efficient concentric winding ensure excellent coupling and low distortion. Ideal for high-fidelity audio setups, vintage radio projects, and audio equipment, this transformer offers reliable performance and easy panel mounting. Order now to upgrade your audio system with precision and durability.
Get Hammond 119DA today—built for excellent low-frequency response and durable performance.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 119DA?
You can click on the BUY or RFQ button to purchase 119DA from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 119DA?
You can download the 119DA datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 119DA?
Hammond Manufacturing
