Hammond Manufacturing 1414N4PHSSM8 Datasheet & Stock

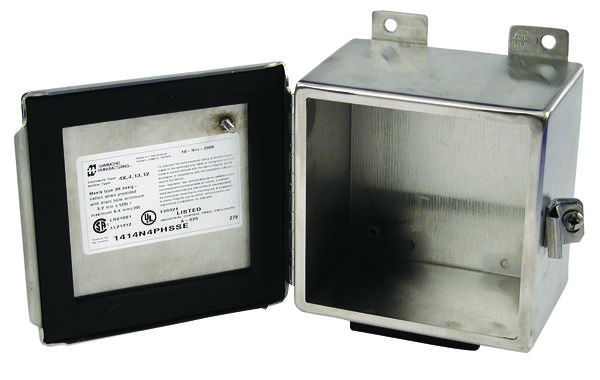

The 1414N4PHSSM8 is a stainless steel Junction Box Enclosure designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. It provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion may be a problem. The cover and enclosure are natural stainless steel with a smooth brushed finish and removable inner panel is finished in white powder coating.




IP66, NEMA-3R, 4, 4X, 12, 13 Protection rating

Formed from 14 gauge 304 stainless steel

Smooth, continuously welded seams

Welded brackets provide for enclosure mounting

Continuous stainless steel hinged cover is secured with stainless steel clamps and screws

Seamless poured-in place gasket

Removable 14AWG gauge inner panel

Tapped studs are provided for mounting inner panels

A bonding stud is provided on the door and a grounding stud is provided in the enclosure





Applications


Industrial
