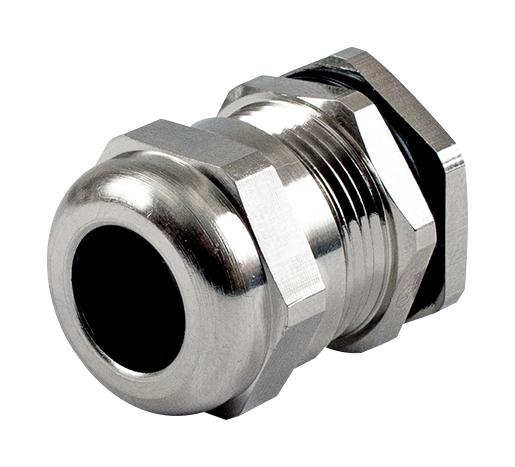

Hammond Manufacturing 1427BCGM12 Liquid-Tight Cordgrip
The liquid-tight cordgrip from the 1427BCG Series is made of nickel-plated brass, designed to secure cables entering or leaving enclosures. It features a large opening and nitrile rubber seal to accommodate various cable diameters, providing IP68, UL, and NEMA protection standards. The strain relief mechanism tightens without damaging the cable, offering reliable strain relief for demanding environments. Suitable for applications requiring durable, corrosion-resistant hardware with locknut and EPDM o-ring included for enhanced sealing, these cordgrips meet industrial standards for safety and performance.
Hammond Manufacturing 1427BCGM12 Liquid-Tight Cordgrip Specifications:
- Material: Nickel Plated Brass
- Thread Sizes: PG7, PG9, PG11, PG13, PG16, PG21, PG29, PG36, PG42, PG48, M12x1.5, M16x1.5, M20x1.5, M25x1.5, M32x1.5, M40x1.5, M50x1.5, M63x1.5
- Outer Diameter (D): Varies by thread size, e.g., PG7: 3-4 mm, PG11: 5-10 mm, PG16: 10-14 mm, PG21: 13-18 mm, PG29: 18-25 mm, M12: 3-7 mm, M16: 4-10 mm, M20: 6-14 mm, M25: 13-18 mm, M32: 18-25 mm, M40: 22-32 mm, M50: 32-38 mm, M63: 29-38 mm
- Outer Length: Ranges from 19 mm to 38 mm depending on thread size
- Inner Thread Length: From 5 mm to 10 mm
- Application: Used where cable sealing and strain relief are critical, suitable for NEMA Types 4, 4X, 6, 6P, 12 & 13 environments, rated IP68, UL listed
- Sealing: Includes nitrile rubber seal and EPDM o-ring for waterproof protection
- Tool Size (mm): Varies by thread size, from 14 mm to 68 mm
- Usage: Accepts a wide range of cable diameters due to large opening and sealing elements, designed for industrial cable management
Buy the Hammond Series 1427BCG Liquid-Tight Cordgrip: 1427BCGM12
Purchase the Hammond Series 1427BCGM12 liquid-tight cordgrip online for superior cable management in harsh environments. Made of corrosion-resistant nickel-plated brass, it provides excellent sealing and strain relief, meeting IP68 and UL standards. Equipped with nitrile rubber seals and EPDM o-rings, this cordgrip ensures waterproof performance and durability. Whether for industrial, commercial, or outdoor applications, this cordgrip accommodates a wide range of cable diameters thanks to its large opening and sealing features. Buy now for dependable protection and easy installation at your convenience.
Order your Hammond Series 1427BCGM12 nickel-plated brass liquid-tight cordgrip today and ensure reliable sealing and strain relief for your industrial cables.
