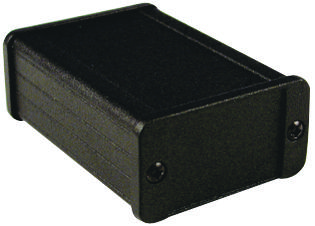

Hammond Manufacturing 1457K1201EBK EMI/RFI Protection Enclosure
The 1457K1201EBK is a durable black EMI/RFI protection enclosure crafted from extruded die-cast aluminum panels. It offers a rugged, one-piece body with a minimum thickness of 1.5mm, ideal for housing PC boards or interfacing modules in industrial environments. Designed for waterproofing, it features full-perimeter conductive foam/gasket with Ni/Cu and conductive adhesive, ensuring effective electromagnetic shielding. Sized for Eurocards, it includes recessed areas for labels or membrane keypads, with internal slots for horizontal PCB mounting. Ideal for industrial and electronic shielding applications, it comes with end panels, gaskets, self-adhesive feet, and O-rings. Recommended screw torque is 5 lbf-in.
Hammond Manufacturing 1457K1201EBK EMI/RFI Protection Enclosure Specifications:
- Material: Extruded die-cast aluminum
- Color: Black
- Thickness: Minimum 1.5mm
- Protection level: IP65 waterproof and dustproof
- Gasket: Ni/Cu conductive foam with adhesive
- Dimensions: Suitable for Eurocards, internal size for PCB mounting approximately 120mm x 80mm
- Features: Recessed area for labels or membrane keypads
- Mounting: Horizontal PCB slide-in slots
- Additional components: End panels, conductive gaskets, self-adhesive feet, O-ring
- Screw torque: 5 lbf-in
Buy the Hammond 1457K1201EBK – Reliable EMI/RFI Protection Enclosure for Industrial Applications
Secure your electronic assemblies with the Hammond 1457K1201EBK EMI/RFI protection enclosure. Crafted from durable extruded aluminum, this enclosure provides excellent shielding against electromagnetic interference. Its IP65-rated waterproof design ensures reliable protection in harsh industrial environments. The enclosure features a recessed area for labels or keypads, internal slots for PCB mounting, and includes essential components like gaskets and O-rings for complete sealing. Easy to install with recommended screw torque of 5 lbf-in, it’s ideal for safeguarding sensitive electronic equipment.
Buy Hammond 1457K1201EBK now and secure your electronic components with this rugged, waterproof EMI/RFI shielding enclosure.
