Hammond Manufacturing 1457N1201E Datasheet & Stock

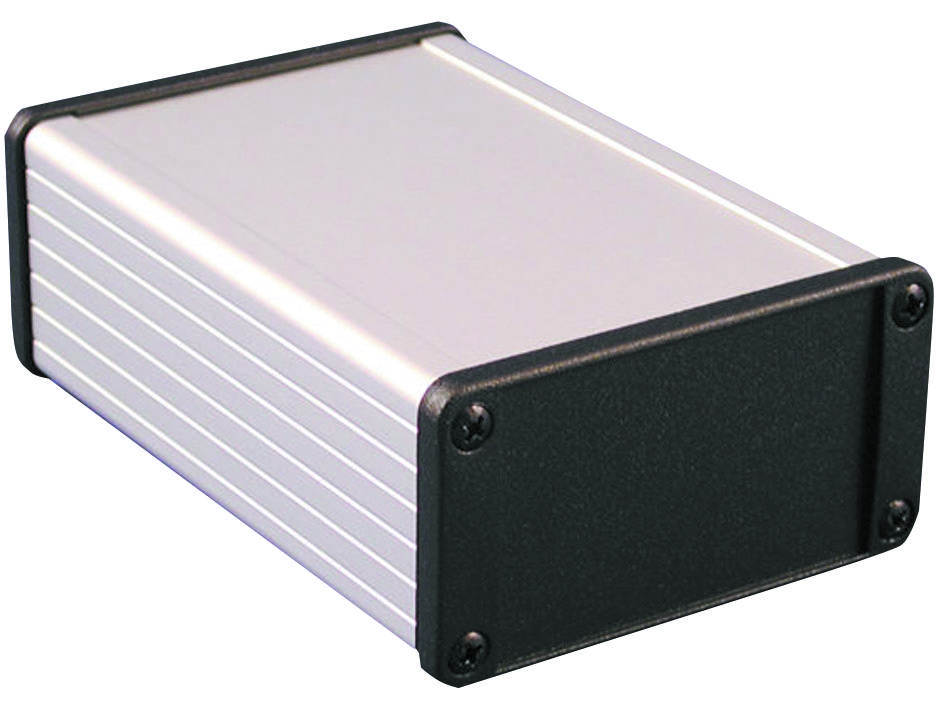

This EMI-RFI protection enclosure features a clear design with extruded die-cast aluminum panels, providing a watertight and rugged environment suitable for housing PC boards or interfacing equipment. The body is constructed from a single piece of extruded aluminum with a minimum thickness of 1.5 mm, ensuring durability. It includes full perimeter conductive foam/fabric gaskets made of nickel/copper and a conductive pressure-sensitive adhesive to ensure EMI/RFI shielding. Designed for standard Eurocard sizes, PC boards are mounted horizontally via internal slots extruded into the enclosure. A recessed area is included for labels or membrane keypads, suitable for industrial applications. The package contains the enclosure box, two die-cast aluminum end panels, EMI/RFI conductive gasket seals, self-adhesive feet, and an O-ring. Recommended screw torque is 5 lbf/in.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1457N1201E?
You can click on the BUY or RFQ button to purchase 1457N1201E from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1457N1201E?
You can download the 1457N1201E datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1457N1201E?
Hammond Manufacturing
