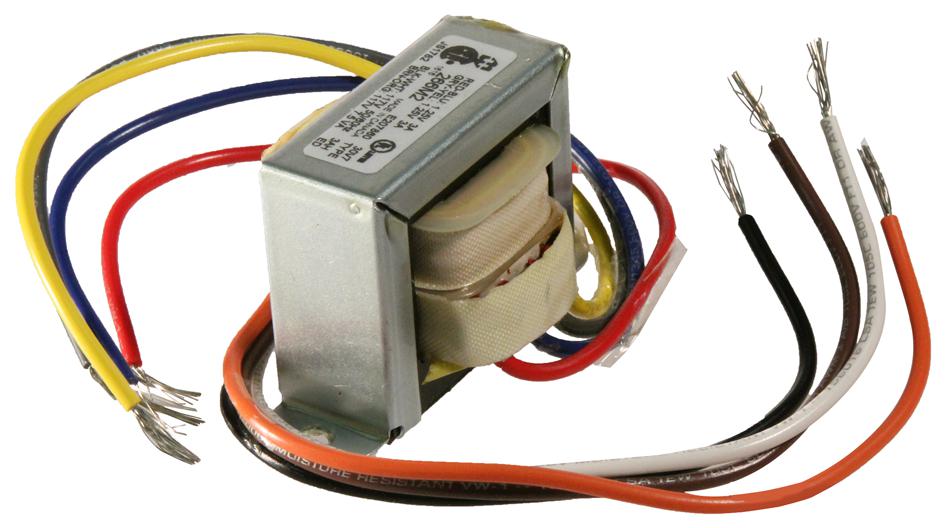

Hammond Manufacturing 266M2 Datasheet & Stock
The 266M2 is a 7.5VA low-voltage open-style isolation transformer featuring a primary voltage of 117/234VAC at 50/60Hz and a secondary with a center-tapped configuration. It provides 2.5VAC at 3A in series or 1.25VAC at 6A in parallel. The secondary windings can be used as a center-tapped, parallel-connected, or individually. Designed for reliable operation with all windings engaged, it includes minimum 6-inch long leads. The transformer has a dual bobbin design that does not require an electrostatic shield, with insulation rated at 130°C (Class B) and a hi-pot test voltage of 2000Vrms. Typical applications include power management and industrial settings.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 266M2?
You can click on the BUY or RFQ button to purchase 266M2 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 266M2?
You can download the 266M2 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 266M2?
Hammond Manufacturing
