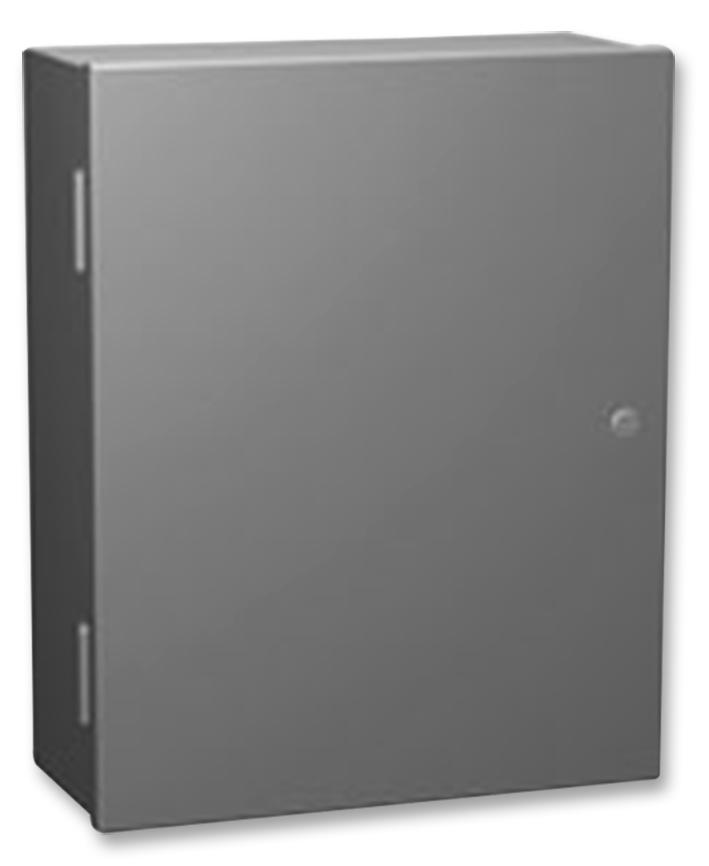

Hammond Manufacturing N1A16129 Industrial Control Enclosure
This wallmount enclosure is designed for indoor use to house controls, instruments, and components not requiring oil-tight or dust-tight protection. Made from 12 or 14 gauge steel, it features a formed and spot-welded construction, a removable inner panel, and a slip hinge for the door. The enclosure is finished in ANSI 61 gray powder coating with an inner panel in white powder coating. It complies with UL50 Type 1, CSA Type 1, and IEC 60529 IP20 standards, making it suitable for industrial control and electrical applications. Mounting holes are provided for easy installation.
Hammond Manufacturing N1A16129 Industrial Control Enclosure Specifications:
- Material: Steel 12 or 14 gauge, formed and spot welded
- Finish: ANSI 61 gray powder coating with white inner panel coating
- Standards: UL50 Type 1, CSA Type 1, IEC 60529 IP20
- Construction: Removable inner panel, slip hinge door, slotted quarter turn latch, bonding and grounding studs
- Application: Indoor control housing for electrical components and instruments
- Mounting: Rear mounting holes included
- Dimensions vary per model, typical gauge 14, with mounting dimensions from 16.00 inches to 48.00 inches in width
- Weight: Ranges from 25 lbs to 197 lbs depending on model
Buy the Hammond N1A16129 – Reliable Industrial Control Enclosure for Indoor Use
Purchase the Hammond N1A16129 industrial control enclosure online today. Crafted from durable steel, it provides reliable protection for electrical instruments and control components. The enclosure’s sleek ANSI 61 gray finish and IP20 rated design ensure indoor safety and compliance with industry standards. Its removable panel and slip hinge door facilitate easy maintenance, making it ideal for electrical cabinets, control panels, and instrumentation housings. Order now and experience industrial-grade quality built to last in demanding environments.
Get Hammond N1A16129 today—built for precision and long-lasting durability in industrial control settings.
Frequently Asked Questions
Where can I buy Hammond Manufacturing N1A16129?
You can click on the BUY or RFQ button to purchase N1A16129 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part N1A16129?
You can download the N1A16129 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of N1A16129?
Hammond Manufacturing
