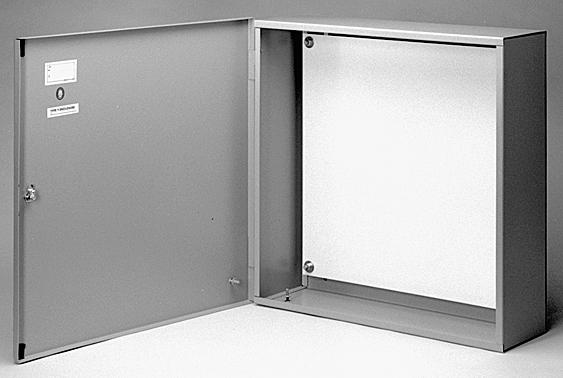

Hammond Manufacturing N1A20209 Control Enclosure
The N1A20209 is a mild steel wall-mounted enclosure designed for indoor use, suitable for housing controls, instruments, and components that do not require oil-tight or dust-tight protection. It features a removable inner panel made of 12 or 14 gauge steel, mounted on collar studs at the rear. The enclosure has a door secured with a slotted quarter-turn latch; units measuring 30 inches and higher are equipped with two latches. The door includes a bonding stud, and a grounding stud is located inside the enclosure for safety grounding. Both the enclosure and door are finished in ANSI 61 grey powder coating, with the inner panel finished in white powder coating. The enclosure offers IP20 and NEMA-1 protection ratings, is constructed from 12 or 14 gauge steel with spot welding, and features slip hinges for the removable door. Mounting holes are provided on the rear for easy installation, and units with 12 AWG gauge use a piano hinge.
Hammond Manufacturing N1A20209 Control Enclosure Specifications:
- Material: Mild steel
- Gauge: 12 or 14 gauge steel
- Finish: ANSI 61 gray powder coating for enclosure and door, white powder coating on inner panel
- Protection Ratings: IP20, NEMA Type 1
- Door: Removable, secured with slotted quarter-turn latch; units 30 inches and higher have two latches
- Hinges: Slip hinges on the door, with optional piano hinge for 12 gauge units
- Mounting: Rear holes provided for easy installation
- Grounding: Bonding stud on door, grounding stud inside enclosure
- Dimensions: 20.00in (A) x 20.00in (B), various other sizes available
- Construction: Formed and spot welded from steel, with removable inner panel mounted on collar studs
Buy the Hammond Series A Indoor Control Enclosure: N1A20209
Secure your indoor control and instrument housing with Hammond's N1A20209 mild steel wall-mounted enclosure. Crafted from durable steel with powder coating, it offers IP20 protection and easy installation with mounting holes on the rear. The removable panel, secured with a quarter-turn latch, simplifies maintenance, while the bonded door and grounding stud ensure safety. Ideal for industrial and automation applications, this enclosure provides a sturdy, dust-free environment for your controls and components. Order online now and ensure reliable, professional-grade housing for your critical systems.
Buy Hammond N1A20209 now and experience unmatched reliability and performance for indoor control cabinet needs.
Frequently Asked Questions
Where can I buy Hammond Manufacturing N1A20209?
You can click on the BUY or RFQ button to purchase N1A20209 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part N1A20209?
You can download the N1A20209 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of N1A20209?
Hammond Manufacturing
