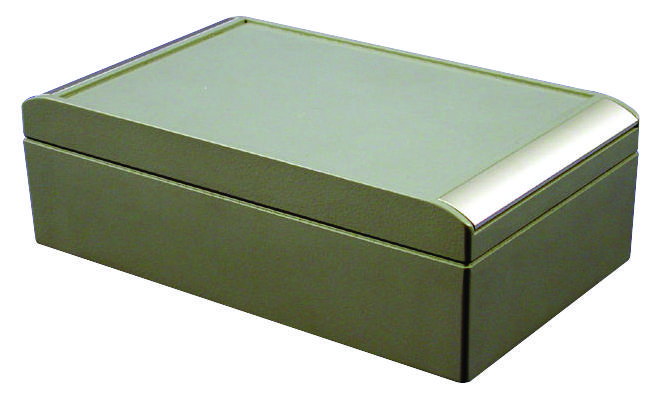

Hammond Manufacturing R191202100 industrial aluminium enclosure
The R191-202-100 aluminium die-cast enclosure is engineered for industrial environments requiring durable protection. It features a clip-on cover that conceals mounting and lid screws, enhancing aesthetics and security. Coated with textured grey RAL 7040 polyester powder, it offers NEMA 4X rating, providing resistance against dust, water, and corrosion. The enclosure’s shallow lid and deep body facilitate flexible installation options. Equipped with captive stainless steel screws and a neoprene gasket resistant to oil and petrol, it ensures an excellent seal for sensitive electronics in harsh conditions. Ideal for control panels, automation, and outdoor electronics, combining robust construction with ease of assembly.
Hammond Manufacturing R191202100 industrial aluminium enclosure Specifications:
- Material: Die-cast aluminium G Al Si 12/ DIN 1725
- Finish: Textured grey RAL 7040 polyester powder coating
- Protection: NEMA 4X rated for harsh environments
- Cover Type: Clip-on with concealed screws
- Screws: Captive stainless steel screws included
- Gasket: Neoprene, oil and petrol resistant
- Design: Shallow lid with deep body for versatile mounting
- Dimensions: 319.95 mm length, 306.00 mm width, 121.00 mm height
- Mounting: Post-installation mounting options available
- Other Features: Molded mounting feet, factory-modifiable for milling, drilling, printing
Buy the Buy Hammond Enclosure Part Number R191202100 Online
Purchase the Hammond R191-202-100 aluminium die-cast enclosure online today and ensure your industrial electronics are protected against harsh conditions. Featuring NEMA 4X protection, a secure clip-on cover, stainless steel captive screws, and a high-quality neoprene gasket, this enclosure offers durability and versatility. Its textured grey powder coating provides corrosion resistance, and its modular design allows post-assembly mounting. Ideal for control panels, outdoor electronics, and automation systems, it combines robust construction with ease of installation for demanding environments.
Buy Hammond R191-202-100 aluminium enclosure now and enjoy reliable protection with versatile mounting and sealing features for industrial use.
Frequently Asked Questions
Where can I buy Hammond Manufacturing R191202100?
You can click on the BUY or RFQ button to purchase R191202100 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part R191202100?
You can download the R191202100 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of R191202100?
Hammond Manufacturing
