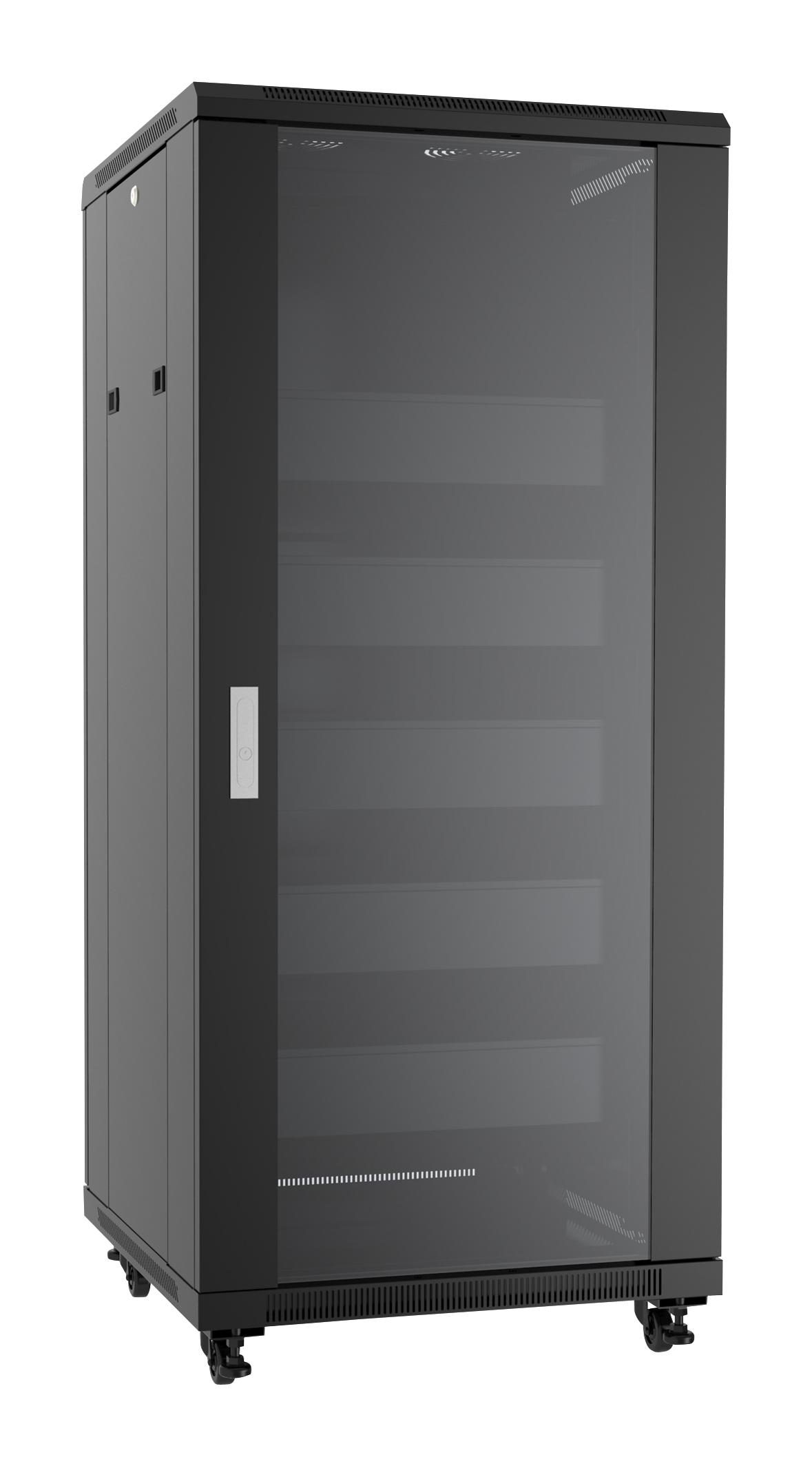

Hammond Manufacturing RBAV42 AV Rack Cabinet
The Hammond RB-AV42 is a cost-effective, high-capacity rack cabinet designed for A/V and security applications. Constructed from light-duty 16-gauge steel, it features adjustable 10-32 tapped mounting rails, pre-installed vented shelves, and filler panels for flexibility. Equipped with locking tempered glass front and steel rear doors, both hinge reversibly, and passive cooling vents for optimal airflow. The cabinet includes removable side panels, cable access points, and provision for optional fans. Its solid build supports up to 950 lbs of equipment, making it ideal for professional media and AV setups, finished in durable black powder paint.
Hammond Manufacturing RBAV42 AV Rack Cabinet Specifications:
- Constructed in light-duty 16-gauge steel
- Equipped with two pairs of 19" EIA compliant tapped 10-32 mounting rails
- Includes pre-installed vented shelves and filler panels
- Locking tempered glass front door opens 180°
- Solid steel rear door with reversible hinge
- Passive cooling vents on top, bottom, and sides
- Provision for up to two optional fans on top
- Removable locking side panels and cable access panels
- Overall height (including leveling feet and casters): 80.91 inches
- Width: 23.62 inches, Depth: 23.62 inches
- Rack Units: 42U, Usable depth: 21.00 inches
- Maximum equipment load capacity: 950 lbs
- Finished in black powder paint (RAL 9005)
- Recessed rubber casters and adjustable leveling feet
- RoHS compliant
Buy the Hammond RB-AV42 – Reliable Media Rack Cabinet for Industrial Applications
Order the Hammond RB-AV42 AV rack cabinet online today to secure a robust, reliable, and flexible solution for your audio-visual and security equipment needs. This high-capacity cabinet comes fully assembled, features locking doors, adjustable rails, and removable panels, supporting up to 950 lbs of equipment. Its passive cooling vents and provision for optional fans ensure optimal airflow, while the durable black powder finish ensures long-lasting use. Perfect for professional A/V setups, media centers, and industrial applications, this cabinet is designed for easy installation and maximum performance.
Buy Hammond RB-AV42 now and experience unmatched reliability and performance in high-capacity AV infrastructure.
